DataPhysics – SPA – Surface Profile Analyzer

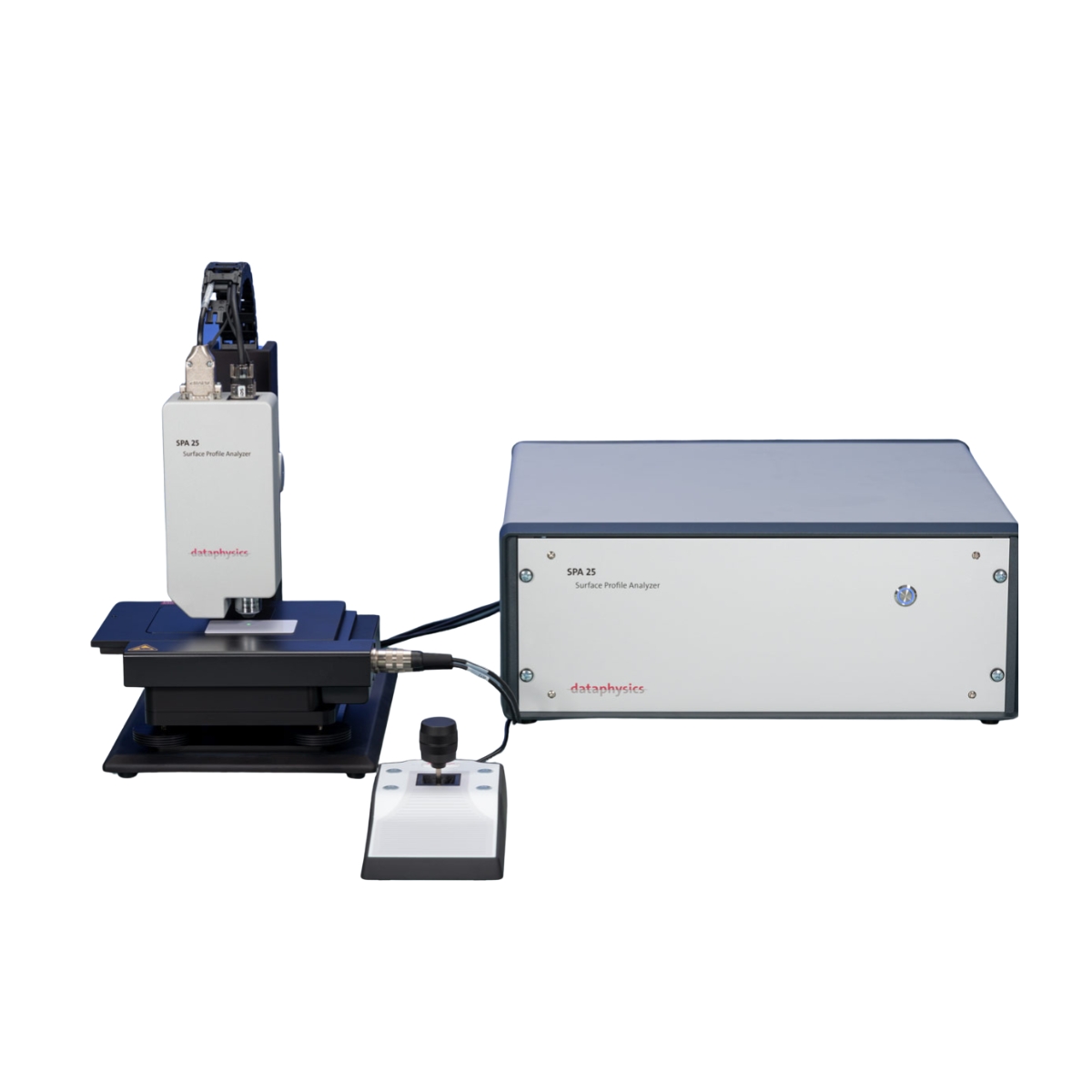

The Surface Profile Analyzer SPA 25 can measure surface topography and roughness parameters with exceptional speed and resolution.
Key Features
Surface profile analyzer
- White-light interferometry measurement technique
- Precision piezoelectric scan drive with gauge control
- Up to 400 μm scan range (z-direction) and 11.3 μm/s scan speed at full resolution
- USB 3 high speed camera with 1920 x 1200 pixel max. resolution and up to 3000 frames/s with restricted ROI
- Two scan modes:
– VSI (vertical scanning interferometry) with 1 nm height resolution
– EPSI (extended phase shift interferometry) with 0.1 nm height resolution
Key Industries
- Aerospace
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale & Retail
DataPhysics Instruments offers a wide range of measuring devices for the analysis of the chemical and physical properties of surfaces…
