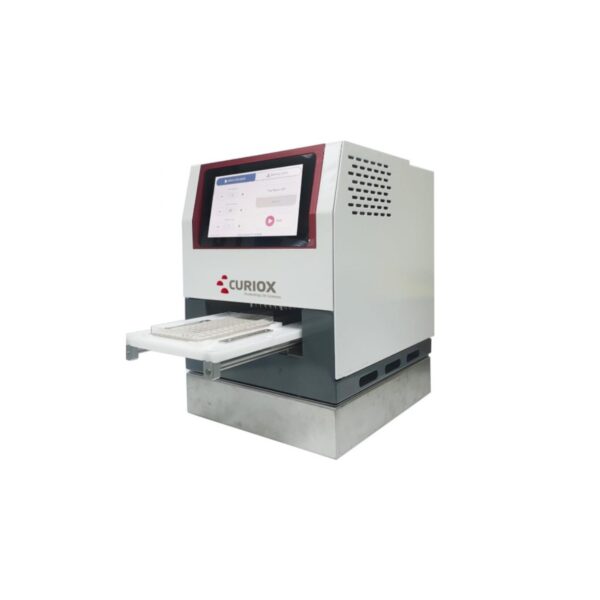

Curiox – Laminar Wash Mini System
The Laminar Wash MINI System employs the only suspension-cell sample preparation method that eliminates the centrifuge and the problems it introduces. It is an affordable bench-top instrument designed to produce the most quantitative and reproducible results for single cell sequencing, flow cytometry and mass cytometry.
Available in :
Avoid the centrifuge and improve data quality and biosafety with the Laminar Wash MINI System
Key Features
- Increased Cell Retention: For splenocytes and TILS or with rare populations of cells. Reliably high cell retention even with 100’s of cells per well
- Rapid Time to Process: The system processes 16 samples in 6 minutes
- Better Sequencing Data: Reduced background with more thorough wash.
- No Pelleting of Cells: Reduces doublets, clumping, and clogging.
- Standardized Results: Reduces manual pipetting errors and errors associated with multiple personnel changes and locations
- Higher Stain Index: For better resolution of populations
- Cleaner Data: Improved cell segregation and resolution; Reduces debris and aggregation of cells
- Affordable with a small footprint
What the Mini delivers:
- Upgrade from the centrifuge — centrifuge-free, laminar flow based washing system
- Enhance cell retention
- Reduce hands on time
- Improve cell viability and reduce stress on cells
Data using the laminar wash system
- Enhanced Cell Recovery post cell sorting for lower cell numbers
- Cell-hashing data reveals increased singlet and reduced doublet counts
- Flexible and optimized performance for using Cite-seq higher antibody panels
Applications
- Flow cytometry
- Single cell sequencing
- Tumor microenvironment
- COVID-19 sample preparation
Technical Specifications
| Voltage Requirements | 100-240V |
| Power Consumption | 24V/3.0A |
| W x H x D (mm) | 275 x 232 x 187.5 |
| Weight | 3.5kg (7.7 lbs) |
See How the Laminar Wash Technology Works
MINI Virtual Demo
Key Industries
- Biopharmaceutical and Biotechnology
Curiox was founded in 2008 to commercialize DropArray™ technology, which was initially developed by Namyong Kim, PhD and his group…
