Carbolite Gero – Laboratory Chamber Furnace
Carbolite Gero’s extensive chamber furnace range has a maximum operating temperature of 1800°C and chamber capacities up to 725 liters. They are suitable for a variety of laboratory, pilot scale and industrial applications. Although there is flexibility in size and temperature, if the application requires the use of modified atmosphere (above 1100°C) or vacuum then a furnace from Carbolite Gero’s tube furnace range should be selected.
An extensive range of chamber / muffle furnaces is available for your laboratory.
Whether you need a small bench mounted affordable solution or a high temperature furnace built to the highest quality, Carbolite Gero has a model that is sure to meet your needs and budget. Ranging from the entry level ELF models at 1100°C through to the laboratory sized HTF model with a maximum temperature of 1800°C our experience of building quality furnaces for customers around the globe over the last eight decades has ensured that the Carbolite Gero name is synonymous with Leading Heat Technology.
Whether you need a front, top or bottom loading chamber furnace our extensive portfolio virtually guarantees there is an appropriate standard solution that will meet your requirements but of course our bespoke design service allows us to meet almost every scenario we have ever been consulted about.
Key Features
- High-Temperature Capability: The furnace can reach temperatures up to 1800°C, accommodating a wide range of laboratory heat treatment processes.
- Advanced Temperature Control: Equipped with sophisticated temperature controllers, it ensures accurate and consistent thermal management for precise experimental conditions.
- Robust Construction: Built with durable materials, the furnace offers longevity and reliability, making it suitable for demanding laboratory environments.
Available Models
The ELF laboratory furnaces comprise three bench-mounted models designed for light duty and general use up to 1100°C.
They have a simple drop-down door and a top-mounted ceramic chimney. The combination of low thermal mass insulation and free radiating wire elements embedded in the chamber sides provide efficient heating.
Key Features
- 1100°C maximum operating temperature
- Carbolite Gero 301 controller with single ramp to setpoint and process timer
- 6, 14 or 23-liter chamber volumes
- Dropdown door with an air gap to minimize external temperature
- Delayed start / process timer function as standard
- Vacuum formed, low thermal mass insulation
- Hard ceramic hearth fitted as standard
- Ventilated via the top-mounted ceramic chimney
Options
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)

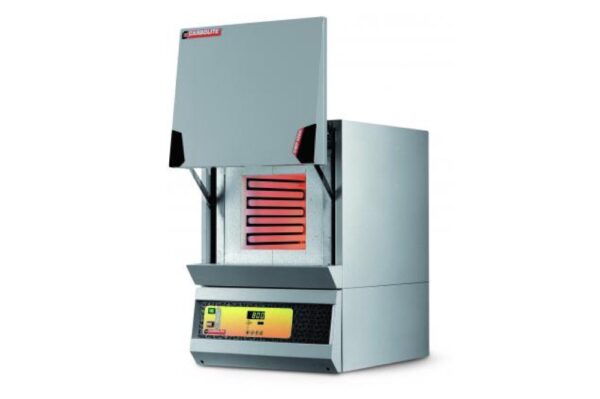

The CWF range of general-purpose laboratory chamber furnaces is bench mounted. Models are available in five sizes with a maximum operating temperature up to 1300°C.
The airflow in the CWF-B furnaces is enhanced by the addition of air inlet holes in the door and a tall chimney which rapidly removes the fumes from the furnace.
Key Features
- Carbolite Gero 301 controller with single ramp to setpoint and process timer
- Soft closing door on 5, 13, 21 & 23-liter models
- Vertical lift door keeps heated surface away from the user
- Delayed start / process timer function as standard
- Hard-wearing alumina element carriers, furnace entrance & hearth
- Energy-efficient low thermal mass insulation
- Free radiating wire-wound elements for optimum uniformity
- Easy access to elements & controls simplifies maintenance & servicing
CWF
- 1100°C, 1200°C or 1300°C maximum operating temperature
- 5, 13, 23, 36 or 65 litre chamber volumes
CWF-B
- Enhanced airflow from tall chimney & door vents for full combustion
CWF-BAL
- With an integrated balance that runs independently of the furnace control system
- Software supplied with the balance may be used to monitor the balance reading via a computer
- The maximum capacity of balance is 3 kg with a resolution of 0.01 g (other capacities available)
Options
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
- Over-temperature protection (recommended to protect valuable contents and for unattended operation)
- A range of Inconel retorts to work with modified atmospheres up to 1100°C
- AMS2750E Nadcap compatible models are available for aerospace applications
- CWF-BAL: 8 kg balance with a resolution of 0.1 g

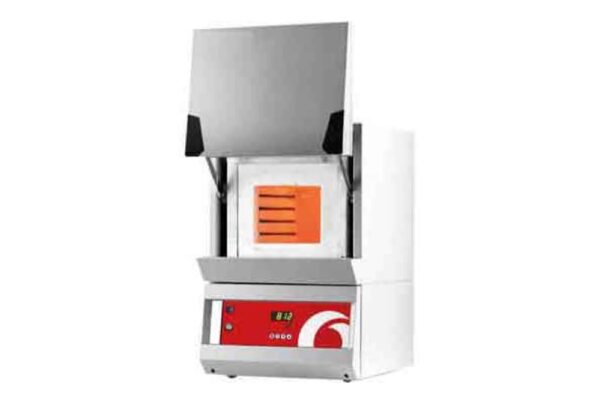

The RWF rapid wire chamber furnaces are available in three chamber sizes with maximum operating temperatures of 1100°C or 1200°C. The free radiating wire elements in combination with low thermal mass insulation are designed to provide a rapid thermal response within the chamber.
Key Features
- 1100°C or 1200°C maximum operating temperature
- Carbolite Gero 301 controller, with single ramp to setpoint and process timer
- 5, 13 or 23-liter chamber volumes
- Ambient to 1000°C in as little as 10 minutes
- Rapid thermal response from free radiating coiled wire elements
- Low thermal mass insulation for fast response and energy efficiency
- Soft closing vertical lift door keeps heated surface away from the user
- Hard-wearing hearth
Options
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
- Over-temperature protection (recommended to protect valuable contents and for unattended operation)
These top loading chamber furnaces are particularly suited for applications involving tall crucibles and heavy components. Heating elements in all four walls minimize the risk of damage from spills and ensures good temperature uniformity. The smaller two furnaces may be bench mounted, but the best access is provided when these furnaces are located on the floor.
Key Features
- 1200°C maximum operating temperature
- Carbolite Gero 301 controller with single ramp to setpoint & process timer
- 5, 10, 23 or 100-liter chamber volume
- Free radiating wire elements in all 4 sides of the chamber
- Vented top opening door
- Angled control panel, protected but clearly visible
- Thermocouple protected by ceramic sheath
Options
- A range of sophisticated digital controllers, multisegment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)
The RHF range of silicon carbide heated high-temperature chamber furnaces comprise four chamber sizes, each available with three maximum operating temperatures of 1400°C, 1500°C and 1600°C. Robust construction and high-quality elements provide rapid heating rates (typically reaching 1400°C in under 40 minutes) and long reliable working life.
Key Features
- 1400°C, 1500°C or 1600°C maximum operating temperature
- Carbolite Gero 301 PID controller with single ramp to setpoint & process timer
- 3, 8, 15 or 35-liter chamber volumes
- Soft closing vertical lift door (3 & 8-liter models only)
- Silicon carbide heating elements provide long life and are able to withstand the stresses of intermittent operation
- RHF 3 & 8 liter has a cast alumina hearth RHF 15 & 35 have silicon carbide hearth
- Low thermal mass insulation for energy efficiency & rapid heating & cooling
Options
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)
- Silicon carbide protection tiles
The laboratory HTF high-temperature chamber furnace range comprises 1700°C and 1800°C models. These furnaces may be customized in order to satisfy specific customer requirements, e.g. the addition of catalytic afterburners for ceramic binder burn-off applications.
Key Features
- 1700°C & 1800°C maximum operating temperatures
- Programmable 3216P1 controller
- From 4 to 10 liter capacities
- High-quality molybdenum disilicide heating elements
- Vertical lift door keeps hot face away from the user
- Advanced refractory interior, used in combination with energy-efficient low thermal mass insulation
- Over-temperature protection
- Fan cooling for low external case temperature
Technical Specifications
ELF
CWF, CWF-B and CWF-BAL
