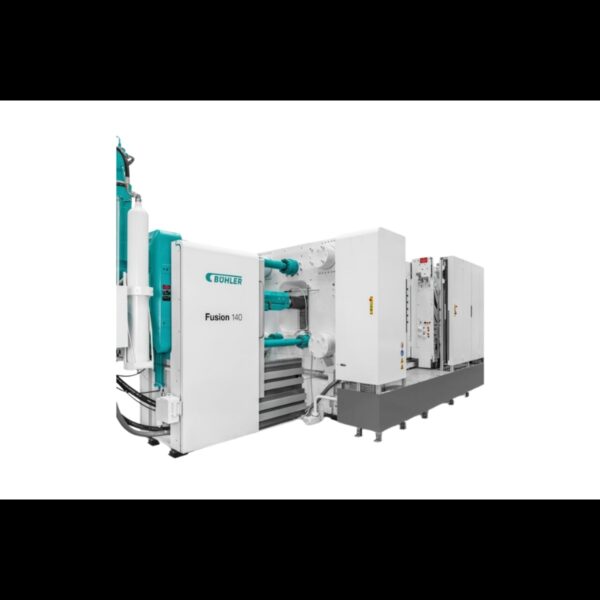

Buhler – Die-Casting Machines – Fusion
Fusion is the flexible solution for die casting aluminum and magnesium with 5500 to 14000 kN die locking force.
Available in :
Closed-loop control, modular design and Industry 4.0 capability make this the future-proof solution for your production.
Key Features
Focus On the Quality of the Parts
The Bühler closed-loop, real-time injection unit is the foundation for best-in-class casting quality.
Easy to Operate. Easy to Service.
DataView makes it easy for your operators to monitor and control the machine. The protective fences open up to reveal well-organized energy frames and offer easy access to key components.
Designed With Energy Efficiency in Mind
Smoother servo-driven hydraulics can cut your cycle time and reduce energy consumption by 40%.
Technical Specifications
| Machine type | Injection force, dynamic (90% injection stroke) (kN) | Injection force intensified (kN) | Plunger diameter (min./max.) (mm) | Shot position (mm) | Plunger stroke (mm) | Shot weight (Al) (min./max.) filling rate 60% (kg) | Projected area, plunger diameter (min./max.) (cm²) |
| 35* | 137 | 373 | 50/85 | 0/-210 | 500 | 1.3/3.8 | 184/532 |
| 55* | 192 | 537 | 60/100 | 0/-250 | 600 | 2.3/6.4 | 289/804 |
| 70* | 288 | 760 | 70/120 | 0/-300 | 700 | 3.6/10.7 | 354/1042 |
| 90* | 288 | 760 | 70/120 | 0/-300 | 700 | 3.6/10.7 | 456/1339 |
| 110* | 409 | 1096 | 80/140 | 0/-350 | 850 | 5.8/17.7 | 504/1545 |
| 140 | 409 | 1096 | 80/140 | 0/-350 | 850 | 5.8/17.7 | 642/1966 |
