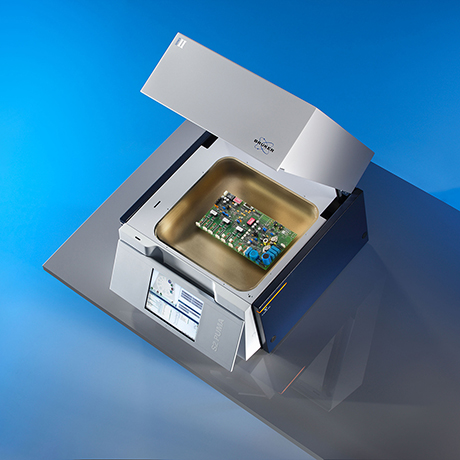

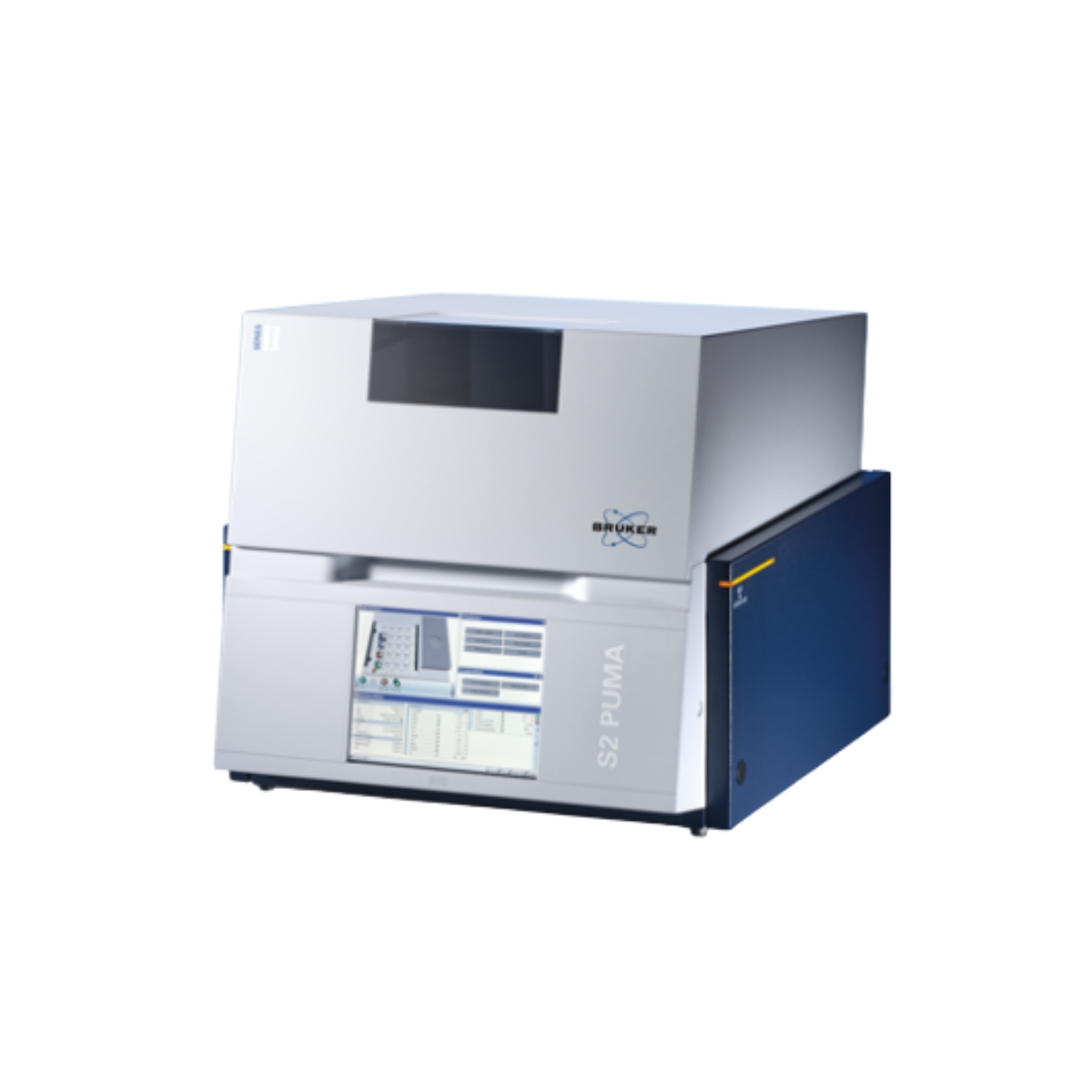

Bruker – S2 PUMA Series 2 – High-End, Versatile Benchtop EDXRF
Fast – Next generation SDD and 50 Watt Power
A high-power (50 W), long-life-time X-ray tube combined with closely coupled optics and the new HighSense™ detectors is the basis for unrivalled EDXRF performance.
Intuitive – SPECTRA.ELEMENTS
Next generation software based on state-of-the-art programming combines functionality with ease-of-use for a smooth and worry-free operation.
Versatile – Optimal configuration for every need
Depending on sample type and desired throughput, the versions Single, XY Autochanger, Carousel, Automation, and Mapping-Stage cover all possible scenarios.
Technical Specifications
| Element range | Sodium to americium (Na – Am) Carbon to americium (C – Am) with light element (LE) detector |
| Concentration range | From ppm to 100 % |
| X-ray tube | Pd or Ag anode; 50 W, max. 2 mA, max. 50 kV (30 kV available) |
| Primary beam filters | 10-position automatic filter changer |
| Detector | HighSense™ (Na – Am) HighSense™ LE (C – Am) |
| Collimator masks* | 1, 3, 8, 12, 18, 23 and 28 mm (34 mm without mask) |
| Sample observation* | Integrated HD video camera |
| Atmosphere modes | Air mode: For heavier elements in all sample types Vacuum mode*: Best light element performance for stable samples and lowest cost of operation Helium mode*: For best light element analysis in volatile liquids such as fuels Helium mode with reduced pressure*: For best light element performance with non-volatile liquid and loose powder samples and lowest helium consumption Nitrogen mode*: Cost saving analysis of liquid samples |
| TouchControl™* | Integrated 12.1” TFT touchscreen |
| Connectivity | Built-in Ethernet port RJ45, 3x USB ports for mouse, keyboard, printer |
| Power requirements | 100-240 V, 50/60 Hz, max. power consumption 600 VA |
| *optional packages |
| S2 PUMA Single | S2 PUMA XY Autochanger | S2 PUMA Carousel | S2 PUMA Automation | |
| Sample size | Up to 51.5 mm (2.03″) Ø; Liquid cups up to 50 ml | Up to 40 mm Ø and 38 mm height in sample holders, or 51.5 mm Ø as sample ring; Liquid cups up to 20 ml | Up to 51.5 mm Ø; Liquid cups up to 50 ml; Bulk samples up to 450 x 420 x 106 mm (width x depth x height) | Up to 40 mm Ø and 38 mm height, or 51.5 mm Ø as sample ring; Liquid cups up to 20 ml |
| Auto-Sampler | Single position, Manual loading | EasyLoad™ XY sample tray with 20 positions, removable; Grabber with automatic liquid sample detection | EasyLoad™ Carousel sample tray with 12 or 18 positions, removable to make room for large bulk samples | EasyLoad™ XY sample tray with 20 positions, removable; Grabber with automatic liquid sample detection; Interface to conveyor belt or robot arm link-up to sample preparation |
| Dimensions (width x depth x height; weight) | 67 x 71 x 37 cm; 87 kg | 67 x 71 x 61 cm; 108 kg | 67 x 71 x 57 cm; 130 kg | 67 x 71 x 57 cm; 132 kg |
Single, XY Autochanger, Carousel, Automation, Mapping-Stage
The S2 PUMA Series 2 with a single-position manual loading enjoys the same technical benefits as the XY Autochanger and the Carousel. The mapping-stage makes multi-spot quality monitoring an easy task. The Automation delivers results on elemental analysis 24/7. The instrument can be connected either via conveyer belt or robot arm link-up to the preparation module.

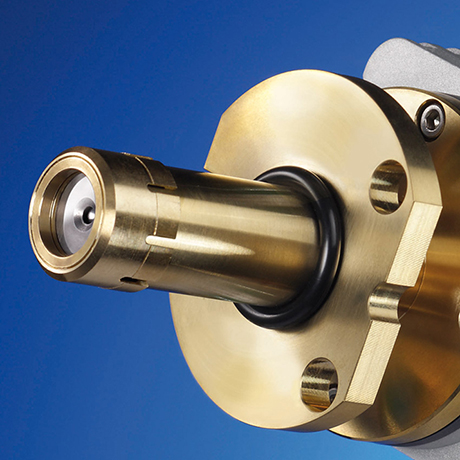

HighSense Detectors
The new HighSenseTM and HighSenseTM LE detectors bring the latest Silicon Drift Detector (SDD) generation to the S2 PUMA Series 2. The detectors are equipped with a fast 8k multi-channel analyzer (MCA) for ultra-high count rates and excellent energy resolution.

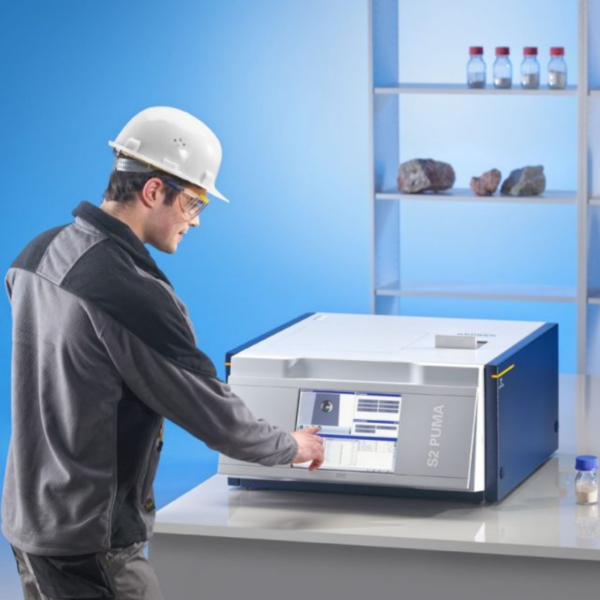

Touch Control
The TouchControl user interface enables users with only minimal training to run routine measurements. The tiles on main screen make important functions easily available while restricting access to instrument configuration and calibrations.

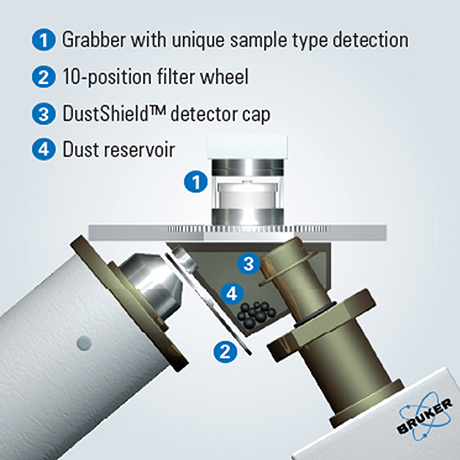

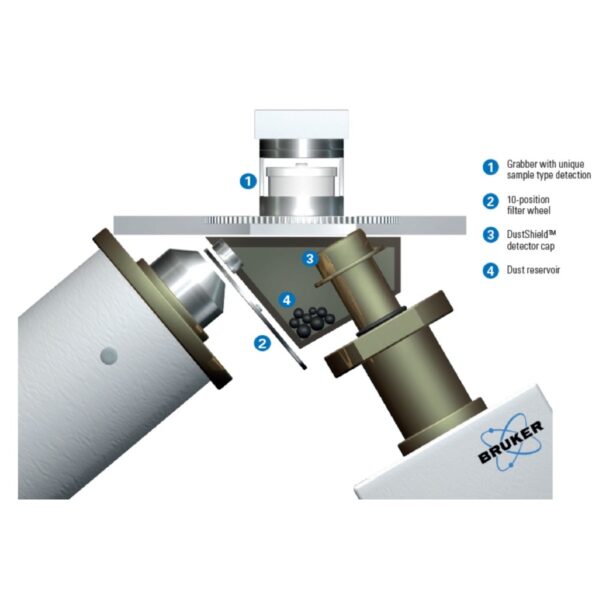

SampleCare
SampleCare™ is a unique multi-layer system to protect vital instrument components from contamination. It protects the X-ray tube and the detector from spillage of liquid samples, from particles of solid samples, and from dust.
S2 PUMA Overview
Key Industries
- Cosmetics & Personal Care
- Mining & Minerals
- Polymers, Plastics and Rubbers
