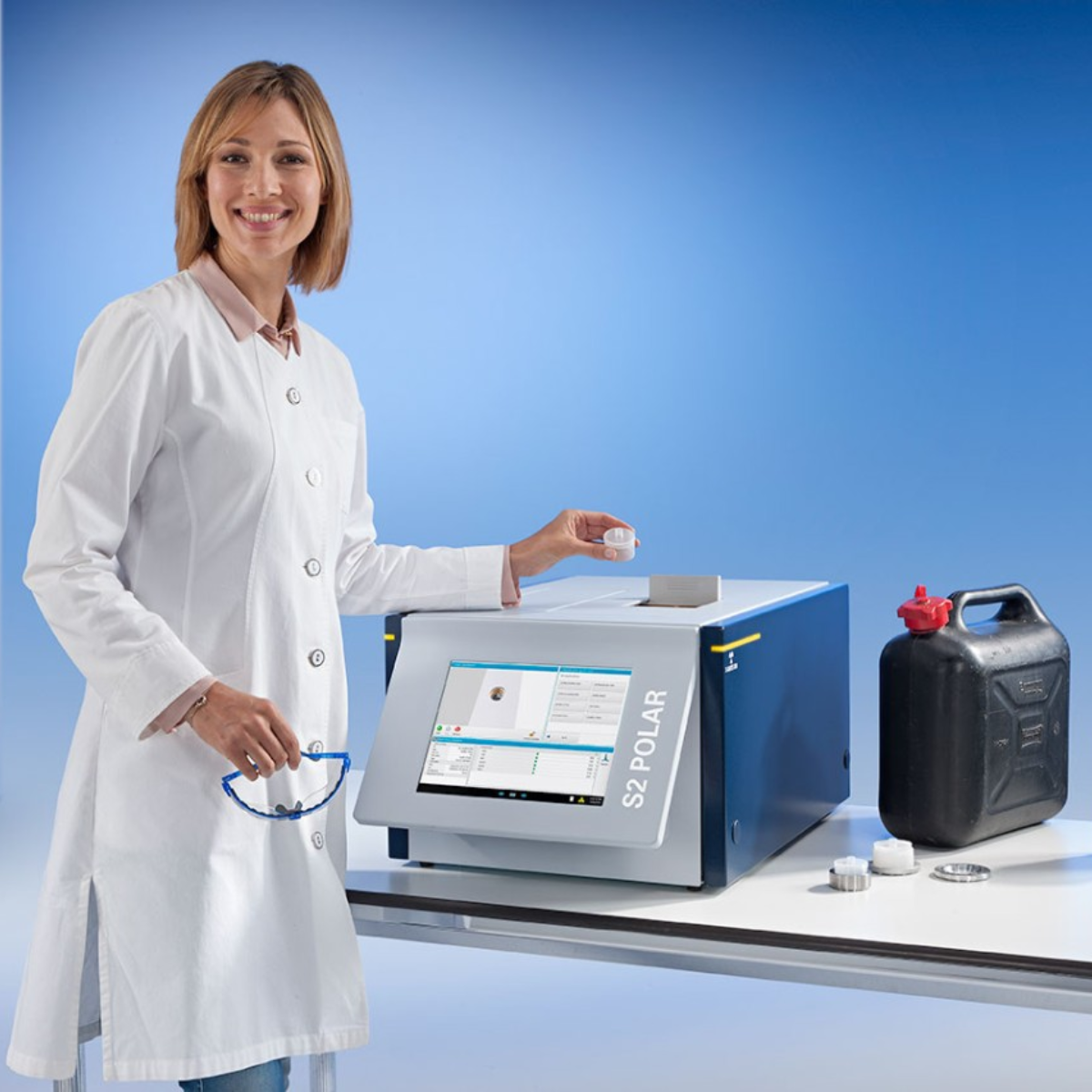

Bruker – S2 POLAR – the EDXRF for the Petrochemical Industry

The S2 POLAR complies with the international S norms such as ASTM D7220, D4294, and ISO 13032.

With its capability to measure multiple elements simultaneously, including important elements in process control such as Ni, V, Fe and CI, the S2 POLAR is well suited for the analytical demands of refineries in one single instrument.

The S2 POLAR is also well suited for the norm-compliant analysis of additives in lubricating oils according to ASTM D6481 and ASTM D7751 that includes the elements Mg, P, S, Cl, Ca, Zn, and Mo. Furthermore this also includes the analysis of elements in edible oils or palm oils.

Safe Liquid Sample Handling with SampleCare™

Highest instrument uptime is crucial for the operation. This is ensured with Bruker’s SampleCare technology. SampleCareTM prevents leakages of liquid samples and protects important system components. This guarantees maximum instrument availability.

For the mentioned petrochemical standards are pre-installed Ready-to analyze solutions available. These S2 POLAR ‘One Button’ solutions minimize instrument set-up time and lead to an economic and cost-effective element analysis and pay back immediately.

Key Features

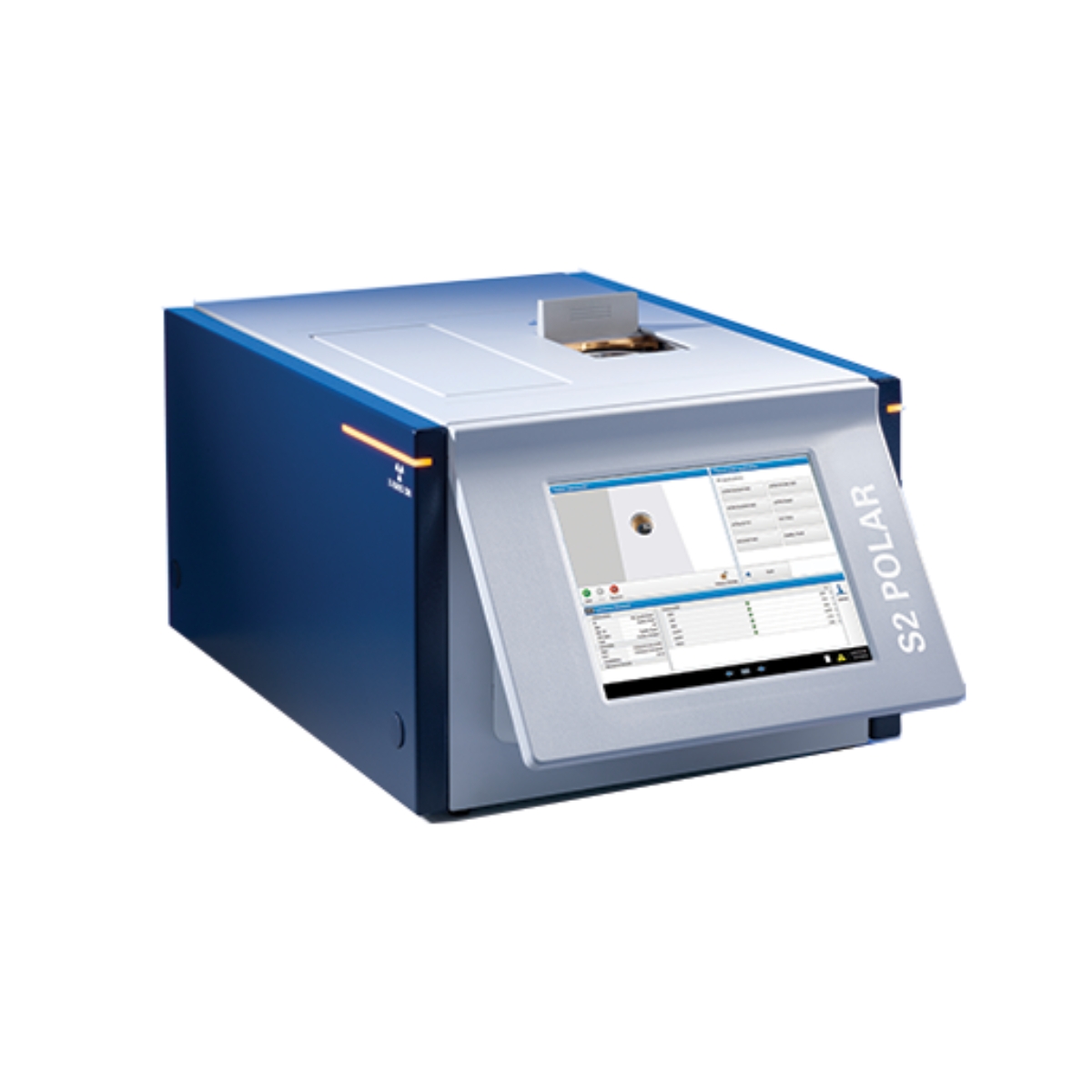

• Compact benchtop instrument.
• Norms of additive analysis in lubricating oils.
• Measurment chamber with polymer sample.
• Easy use with touch control.

Technical Specifications

	Specification	Benefit
X-ray tube	50 W, high-power X-ray tube, max. voltage 50 kV, with polarizing HighSense™ beam path Optionally: 30 kV max.	Max. power for short measurement times and high sample throughput, beam path optimized for petrochemical materials
Detector	HighSense™ ULS Silicon Drift Detector	Highest count rates for fast analysis, low LLD
Atmosphere modes*	Helium mode Vacuum mode	Optimal light element analysis of liquids Low cost of operation
Sample preparation*	Liquid cups, SampleCare cups, Prolene and Mylar® foils, pipettes, balance	Accessories ensure high throughput of liquid samples. Low-cost per sample due to standardized liquid cups
TouchControl™	Integrated 12.1‘‘ TFT touchscreen, multilingual user interface: English, German, French, Spanish, Portuguese, Italian, Russian, Chinese, Japanese	IslandMode™ without external PC Intuitive and easy-to-use, in your own language
Connectivity	Ethernet port RJ45, 3x USB ports for mouse, keyboard, and printer; HDMI/VGA ports for external display, remote access via TCP/IP	IslandMode™ but not isolated, various options for printing and network data transfer, even fully remotely
Power supply	100-240 V, 50/60 Hz, max. 600 VA	Standard wall plug
Dimensions; width x depth x height, weight	46.6 x 74.5 x 37.0 cm, 55 kg 18.3’’ x 29.3’’ x 14.6’’, 121 lbs	Small and compact for installations with limited space, e.g. for on-site process control in refineries
	*Optional packagesSafetyDIN EN ISO 9001:2008, 2006/42/EC (CE-certified Machinery directive), 2014/35/EC (Electrical equipment), 2014/30/EC (Electromagnetic Compatibility), German Type Approval and Vollschutz according to BfS RöV, Fully radiation-protected system; radiation <1 μSv/h (H*), Compliant to ICRP, IAEA, EURATOM

S2 POLAR Refinery Analyzer

	Specification	Benefit
Applications	Elemental analysis in refineries e.g. sulfur analysis of ・gasoline, diesel ・biodiesel ・kerosene, jet fuel, heating oil ・naphtha, residual oil to crude Further elements on request (e. g. P, Cl, Fe, Ni, V)	All refinery applications on one unit
Norms	ASTM D7220-17: Sulfur in automotive, heating, and jet fuels from 3 ppm to 942 ppm ASTM D4294-16: Sulfur in petroleum and petroleum products from 16 ppm to 5 % Ready-to-analyze solutions* for ASTM D7220 and D4294 including blanks, set of standards, QC and DC samples Fulfills ISO 13032, 20847, 8754, IP 336, 496, 532, and JIS K 2541-4	Norm-compliant sulfur analysis, internationally accepted, including ultra-low sulfur (ULS) applications Dedicated, optional pre-installed push button methods to fit for purpose
Detection limit (LLD)	0.5 ppm S at 300 s measurement time	Precise and accurate S measurements, including ultra-low sulfur (ULS). Enables thesh-hold relevant process control at all steps in refineries
Measurement range	3 ppm to 5 % S, combined in one calibration with automated line switch Higher concentrations on request	One calibration with wide concentration range
	*Optional packages

S2 POLAR Oil Analyzer

	Specification	Benefit
Applications	Elemental analysis of additives in oils and polymers	Elemental analysis optimized for petrochemical products
Norms	ASTM D6481-14: P, S, Ca, Zn, ASTM D7751-16: Mg, P, S, Cl, Ca, Zn, Mo Ready-to-analyze solutions* for ASTM D6481 and D7751 including blanks, set of standards, QC and DC samples Further elements and norms on request	Norm-compliant analysis, internationally accepted Dedicated, optional pre-installed push button methods to fit for purpose
	*Optional packages
