Brookfield – In-Line process Viscometers
Brookfield provides a variety of viscosity measurement and control systems used throughout the world for many different applications.
Brookfield offers In-Line Process Viscometers designed to provide continuous viscosity measurement and control in a variety of industrial applications.
Key Features
- Unique Micro-Rotational Sensor: Advanced technology with no moving parts, eliminating the need for maintenance and ensuring long-term reliability.
- Vibration-Resistant: Unaffected by external vibrations, providing accurate and stable measurements even in challenging environments.
- Flexible Installation: Offers versatility with the option for vertical or horizontal installation, adapting to various setup requirements.
- High-Temperature Accuracy: Delivers true temperature readings up to 120°C, ensuring precise monitoring throughout the process.
- Color Consistency: Maintains correct color consistency throughout the process, critical for quality control in color-sensitive applications.
- Compact Design: Space-saving design, standing at just 8.5 inches tall, making it easy to integrate into tight spaces.
- Worldwide Support: Backed by global support, ensuring you have the assistance you need, wherever you are.
Available Models
Technical Specifications
| Measurement Type | Torsionally oscillating probe |
| Measurement Range | 1 to 3,000 (optional 12,000) cSt using an NIST traceable, Newtonian fluid measured at 25°C |
| Process Connections | ¾” standard, (1, 2½” tri-clamp or 3A design, optional) |
| Repeatability | ±1.0% of reading |
| Wetted Surfaces | 316L stainless steel |
| Sensor O-Ring | Isolast for probe Viton for chamber housing (EDPM or Kalrez®, optional) |
| Temperature (Fluid) | -4°F to 392°F (-20°C to 200°C) |
| Pressure Range | Vacuum to 200 pig max., 400 psig option |
The Brookfield FAST system has a rugged design with non-moving parts. It has been designed to perform day after day under the extreme demands in printing, coating and adhesive operations – with no maintenance. Utilizing a high frequency, micro-rotational core, which is unaffected by press vibration, this worry free system can measure and control the viscosity of your inks, coatings and adhesives from start to finish…allowing the operators to handle other press concerns.
Key Features
- Unique micro rotational sensor
- No moving parts, no maintenance
- Unaffected by external vibration
- Flexible vertical or horizontal installation
- True temperature readings to 200°C
- Maintains correct color throughout the process
- Compact: only 8.5 inches tall
- Worldwide support
Technical Specifications
| Viscosity Range | 350 – 250,000 (cP/mPa·s) |
| Speeds | single speed: application specific |
| Input Power | 115 Vac: 50/60 Hz or 230 Vac: 50/60 Hz, 24 Vdc, 12 Vdc |
| Output | 4 – 20 mA |

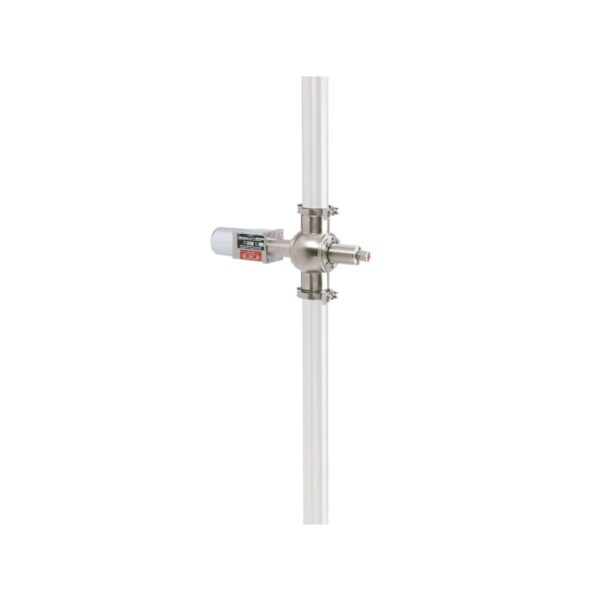

The STT-100 In-Line Viscometer is designed to provide years of trouble-free service in closed loop systems which require constant monitoring and associated control of product viscosity. This instrument is 3A approved and has been used successfully in many food applications.
Key Features
- Conforms to 3A sanitary conditions and has clean-in-place (CIP) design
- Continuous measurement eliminates need for “Grab” sampling and allows for prediction and constant control of final product properties
- Concentric cylinder geometry (Couette type) provides viscosity measurments at defined shear conditions
- Defined shear means agreement with Brookfield Laboratory measurements at equivalent shear rates
- Constant or variable speed motors available
- 4-20 mA output signal provides a variety of display and control capabilities
- Capable of a wide range of pressures, temperatures, viscosities, flow and shear rates
- Measurement “Zone” is protected from main flow, allowing accurate, repeatable measurement under variable conditions
- Mounts in-line supported by connections: Available in 3″ or 4″ pipeline connections; sanitary, threaded or flanged
- Easy to check and maintain calibration
Technical Specifications
| Viscosity Range | 10 – 500,000 (cP/mPa·s) |
| Speeds | single speed: application specific |
| Input Power | 115 Vac: 50/60 Hz 230 Vac: 50/60 Hz 24 VDC |
| Output | 4 – 20 mA |
The TT-100 In-Line Viscometer is designed to provide years of trouble-free service in closed loop systems which require constant monitoring and associated control of product viscosity.
Key Features
- Continuous measurement eliminates need for “Grab” sampling and allows for prediction and constant control of final product properties
- Concentric cylinder geometry (Couette type) provides viscosity measurements at defined shear conditions
- Defined shear means agreement with Brookfield Laboratory measurements at equivalent shear rates
- Constant or variable speed motors available
- 4-20 mA output signal provides a variety of display and control capabilities
- Capable of a wide range of pressures, temperatures, viscosities, flow and shear rates
- Measurement “Zone” is protected from main flow, allowing accurate, repeatable measurement under variable conditions
- Mounts in-line supported by connections: Available in 1″, 1½”, 2″, or 4″ pipeline connections; sanitary, threaded or flanged
- Easy to check and maintain calibration
- Can be operated at shear rates of 511 sec-1 as required by the Standards of the American Petroleum Institute (API)
- Use in hazardous locations worldwide with optional IECEx, ATEX, and North American explosion-proof certifications
Technical Specifications
| Range | 10-10,000 cP |
| Control Signal | Up to 3 amp solenoid relay control |
| Display | Digital display of viscosity units |
| Output | 4 – 20 mA |
The VTE combines viscosity indication and control and is widely used online in print and coatings industries for automatic addition of solvents.
Key Features
- Convenient & inexpensive
- Sensitive response ensures continuous conditioning of fluid
- Inline measurement eliminates time constraints
- Simple to change viscosity range,
- Continuous linear output (4-20mA)
- ± Accuracy full scale
Key Industries
- Cosmetics & Personal Care
- Food & Beverage
- Oil & Gas
- Pharmaceutical
- Powders & Pigments / Coating
Brookfield is an ISO 9001:2015 certified manufacturer and the world leader in viscosity, texture analysis, and powder flow instrumentation. For…
