  • Plate Reader CLARIOstar Plus Brochure – BMG Labtech


The CLARIOstar Plus is a multi-mode microplate reader with advanced LVF Monochromators™, highly sensitive filters, and an ultra-fast UV/vis spectrometer. The Enhanced Dynamic Range and automatic focus technologies make manual settings superfluous and detection optimisation easier than ever.

Atmospheric Control Unit, temperature incubation, multiple shaking, well scan and reagent injectors make the CLARIOstar Plus the ideal platform for any live cell-based assay.

Technical Specifications

Detection ModesFluorescence intensity (incl. FRET)
Fluorescence polarization
AlphaScreen®/AlphaLISA®/AlphaPlexTM
Luminescence (flash and glow) – incl. BRET
Time-resolved fluorescence
TR-FRET
UV/vis absorbance spectra
Measurement ModesTop and bottom reading
Endpoint and kinetic
Sequential multi-excitation
Sequential multi-emission
Spectral scanning (fluorescence, luminescence, absorbance)
Ratiometric measurements
Well scanning
Microplate Formats6- to 1536-well plates, user-definable
LVis Plate with 16 low volume microspots (2 μL)
Microplate CarrierRobot compatible
Light SourcesHigh energy xenon flash lamp
Dedicated laser for AlphaScreen®/AlphaLISA®/AlphaPlexTM
DetectorsLow-noise photomultiplier tube
Red-shifted photomultiplier tube
CCD spectrometer
Read timesFlying mode (1 flash) 8 s (96), 15 s (384), 28 s (1536)
10 flashes 19 s (96), 57 s (384), 3 min 4 s (1536)
Integrated Barcode ReaderUp to two integrated barcode readers
ShakesLinear, orbital, and double-orbital with user-definable time and speed
Incubation#ERROR!
SoftwareMulti-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant
Integrated fluorophore library
DimensionsWidth: 45 cm, depth: 51 cm, height: 40 cm; weight: 32 kg

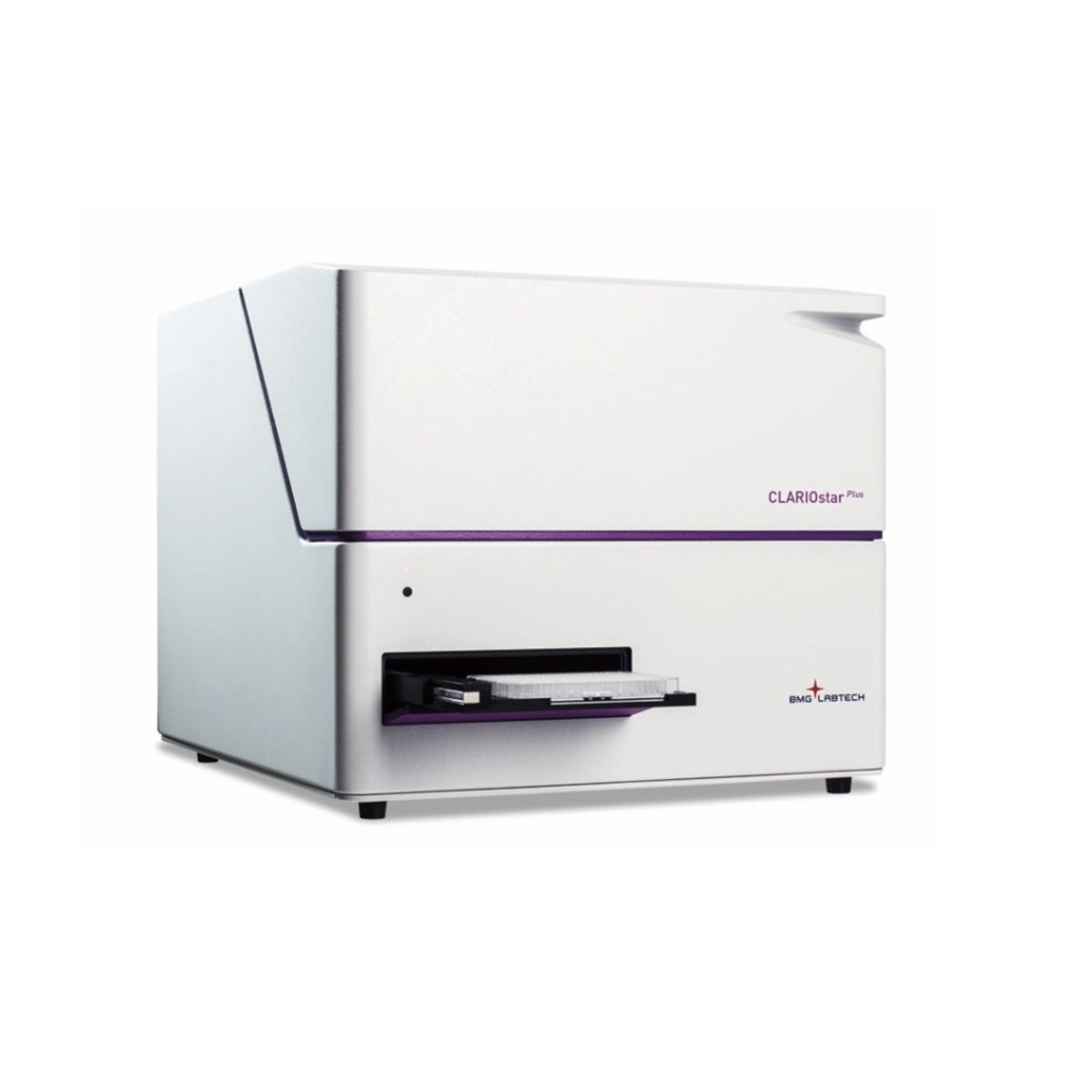

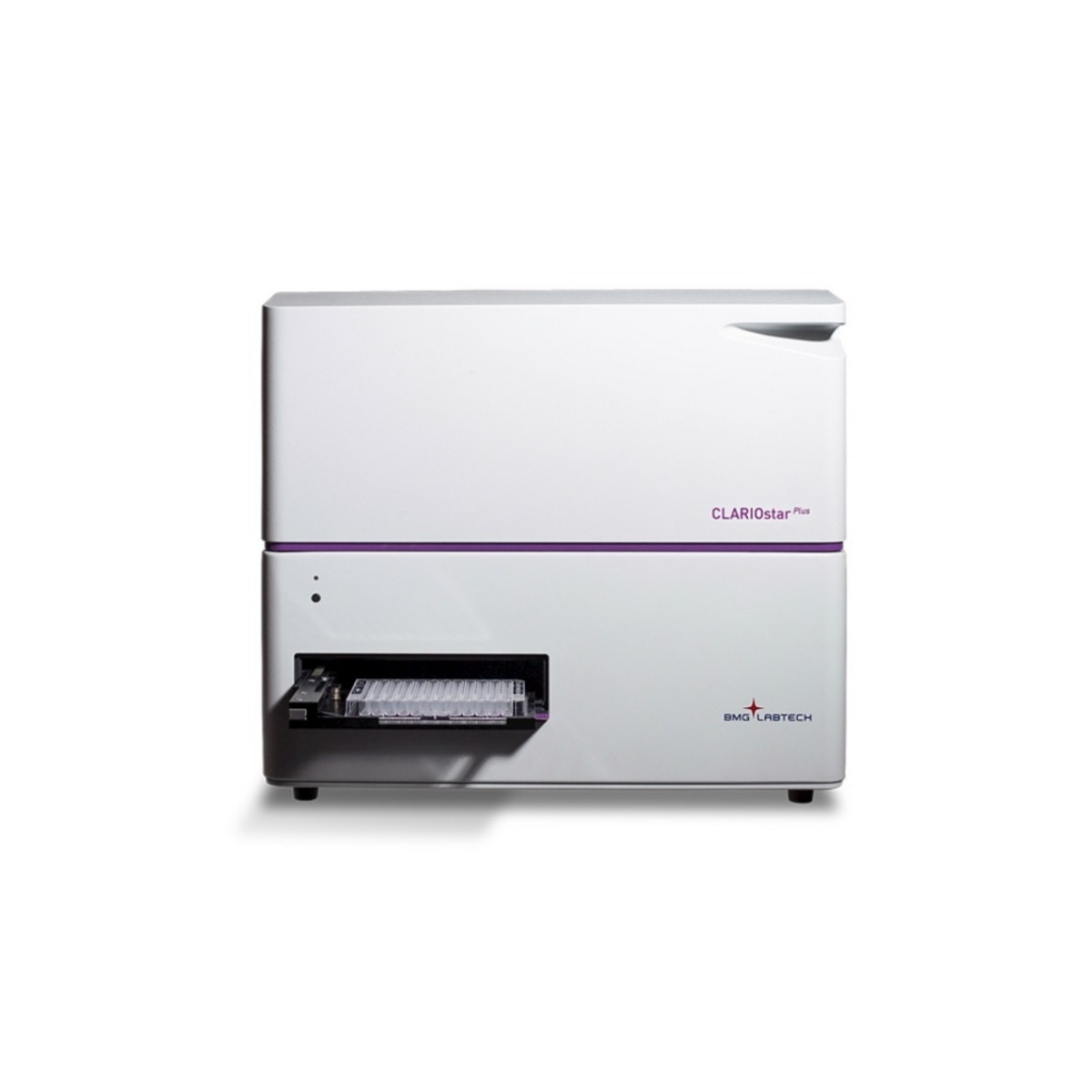

CLARIOstar Plus Microplate Reader

Key Features

  • Innovative monochromators for increased sensitivity
  • Fully-flexible wavelengths and bandwidths
  • Spectral scanning in ABS, FI and LUM
  • Largest dynamic range with no manual intervention
  • Rapid full-plate autofocus
  • Dedicated features for live cell-based assays
  • Ultra-fast data sampling (100 measurements/second)
  • Dedicated laser for Alpha Technology
  • Easily integrated into automated systems

Key Industries

  • Biopharmaceutical and Biotechnology

Brand

BMGLABTECH

Our history begins in 1990, as the physicist Dr. Bela Gurath founded BMG LABTECH in Offenburg, Germany. The first three years were affected by defining the strategic orientation of the company. In this year’s, further shareholders joined, among others Dr. Thomas Räbiger who is leading the company today. The team quickly realised that they should develop their own products and set the sights on becoming “the microplate reader company” on the market.
