  • MKT series Brochure – Binder


Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.



Environmental Simulation Chambers for Rapid Temperature Changes With Extended Low-Temperature Range

BINDER environmental simulation chambers in the MKT series are designed for rapid temperature changes and also feature an extended low-temperature range, with chambers operating between -70 °C and 180 °C, and thereby proving suitable for a great many different tasks. The high levels of precision and performance delivered by these environmental simulation chambers are put to good use during cyclical temperature tests.

The dynamic climate chambers in the MKT series come with the proven APT.lineâ„¢ preheating chamber technology, which ensures precise temperature values across the entire working area, even when chambers are fully loaded. They also feature a built-in powerful cooling unit with fast cooling down rates. Condensation protection can be programmed for samples, while four zero-voltage relay contacts can also be activated via the MCS controller. The environmental simulation chambers have a heated viewing window with LED interior lighting to ensure good visibility. Overall, the climate chambers offer an extensive range of programming options that allow them to be used extremely flexibly in line with the specific requirements in question.

BINDER Environmental Simulation Chambers for Innovation and Precision

The innovative technology of BINDER’s environmental simulation chambers is contained within premium housing insulation, which keeps the temperature of the housing consistently low and reduces noise levels during operation. The chamber interior, preheating chamber, and inner sides of the door are made from stainless steel, making them robust, durable, and easy to clean. A troubleshooting system with visual and acoustic alarms is also on hand to take care of safety.

The dynamic climate chambers in the MKT series from BINDER combine innovative technology with ease of handling, and maximum precision and safety. The environmental simulation chambers meet the high standards for industrial material testing as well as aging and stress tests, far exceeding the possibilities offered by standard heating chambers and proving ideal for a wide range of tasks. The climate chambers are available in different versions with interior volumes offering varying capacities.

Technical Specifications

ModelHousing dimensions not incl. fittings and connections
W x H x D
Internal dimension
W x H x D
Net weightInterior volume
MKT 115980 x 1725 x 865 mm600 x 480 x 400 mm305 kg115 L

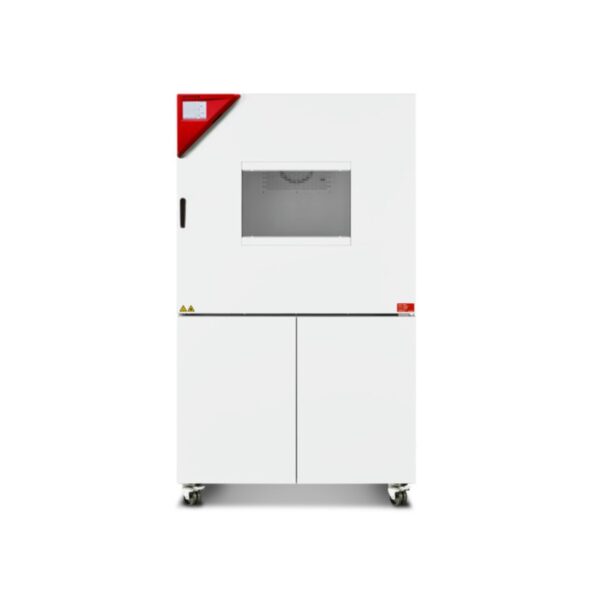

MKT 2401115 x 1935 x 925 mm735 x 700 x 443 mm380 kg228 L

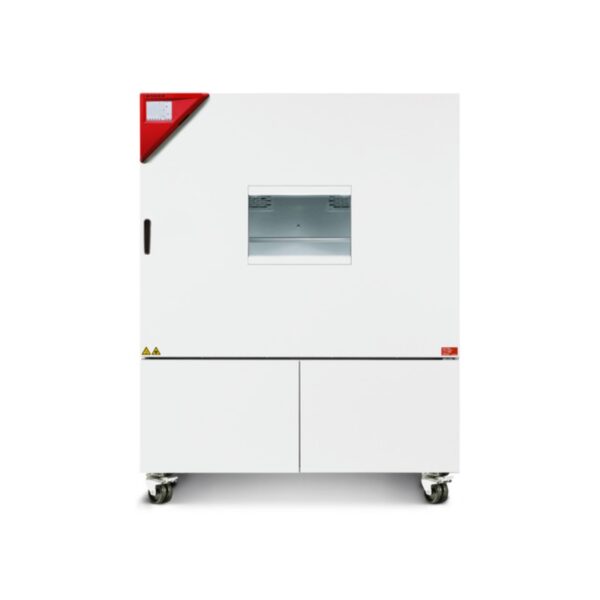

MKT 7201580 x 2005 x 1140 mm1200 x 1020 x 600 mm610 kg734 L

Available Models

  • Temperature range: -70 °C to 180 °C
  • 4 zero-voltage relay contacts
  • APT.lineâ„¢ preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management software APT-COMâ„¢ Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug: 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • 230 V power socket on the right-side control panel
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerants R-452A and R-23
  • Cooling with cascade compressor cooling unit
  • Temperature range: -70 °C to 180 °C
  • 4 zero-voltage relay contacts
  • APT.lineâ„¢ preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COMâ„¢ Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug: 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • 230 V power socket on the right-side control panel
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerants R-452A and R-23
  • Cooling with cascade compressor cooling unit
  • Temperature range: -70 °C to 180 °C
  • 4 zero-voltage relay contacts
  • APT.lineâ„¢ preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COMâ„¢ Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • 2 access ports with silicone plugs: 80 mm, left and right
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • 230 V power socket on the right-side control panel
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerants R-452A and R-23
  • Cooling with cascade compressor cooling unit

Dynamic Climate Chamber MKFT 240

Key Features

  • Homogeneous climate conditions thanks to APT.lineâ„¢ technology
  • Comprehensive programming and data acquisition
  • Large heated viewing window

Key Industries

  • Education & Academics
  • Food & Beverage
  • Pharmaceutical
  • Service

Brand

Binder

With 22,000 series production machines supplied each year globally, family company BINDER is now one of the leading experts on environmental simulation chambers. For over 30 years at our German site in Tuttlingen, we have developed and produced premium products which combine superior technology, first-class advice, and exemplary service. These three factors are symbolized by the three red triangles that make up our logo – and our customers appreciate the benefits every day through the outstanding results of their work.
