Binder – Drying and Heating Chambers – Series FP Classic.Line – With Forced Convection and Program Functions

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating – even for chambers under full loads.

Inquiry Now

Overview

Features

Specifications

Heating Chambers With Forced Convection and Program Functions

BINDER has a range of heating chambers in different versions, precisely tailored to suit specific requirements and tasks. In its Classic.Line FP series, BINDER has developed extremely complex temperature testing chambers, which also meet high quality standards and offer a broad variety of programming options. The forced convection provides short drying times and fast heating up times, which is a real benefit, especially when chambers are fully loaded.

BINDER heating chambers with forced convection and program functions in the FP series are powerful and extremely accurate. They can be operated within a temperature range of between 5 °C and 300 °C. Heating chambers in the FP series boast almost unlimited adjustment opportunities, with the option to program temperature cycles, the fan speed setting for each program interval, the weekly program timer, and the real-time clock of the controller.

BINDER Heating Chambers for Impressively Consistent Test Conditions

Homogeneous temperature distribution is guaranteed in the usable space thanks to the patented APT.line™ preheating chamber technology. The heating chamber’s fan helps maintain the temperature accuracy here. Sample conditions are consistent across the entire usable space, regardless of the amount or size of the sample.

Alongside their high performance and efficiency, and varied programming options, BINDER’s heating chambers with forced convection are also incredibly user-friendly. All of the unit’s functions are clearly arranged and the settings for them can be adjusted with ease. Cleaning is no hassle at all thanks to the stainless steel finish of the interior, the preheating chamber, and the inner sides of the doors, while a serial interface (RS 422) allows the FP series heating chambers to communicate with computers.

Ideal for a wide range of industry, research, and quality assurance applications, BINDER temperature testing chambers can meet even the most exacting of demands.

Technical Specifications

ModelHousing dimensions not incl. fittings and connections
W x H x D
Internal dimension
W x H x D
Net weightInterior volume
FP 53635 x 620 x 575 mm400 x 400 x 340 mm44 kg53 L
FP 115835 x 705 x 645 mm600 x 480 x 410 mm62 kg115 L
FP 2401035 x 825 x 745 mm800 x 600 x 510 mm96 kg240 L
FP 4001235 x 1025 x 765 mm1000 x 800 x 510 mm145 kg400 L

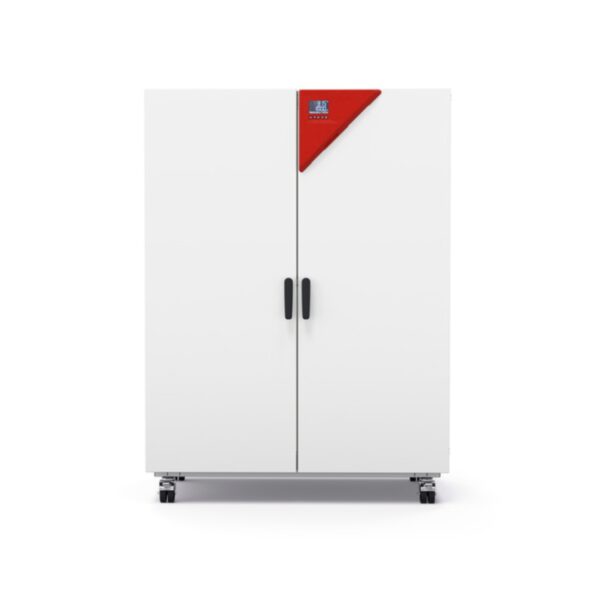

FP 7201235 x 1530 x 865 mm1000 x 1200 x 610 mm194 kg720 L

Available Models

  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line™ preheating chamber technology
  • Adjustable fan speed
  • Adjustable exhaust air flap
  • Controller with time-segment and real-time programming
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422
  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line™ preheating chamber technology
  • Adjustable fan speed
  • Adjustable exhaust air flap
  • Controller with time-segment and real-time programming
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422
  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line™ preheating chamber technology
  • Adjustable fan speed
  • Adjustable exhaust air flap
  • Controller with time-segment and real-time programming
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422
  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line™ preheating chamber technology
  • Adjustable fan speed
  • Adjustable exhaust air flap
  • Controller with time-segment and real-time programming
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422
  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line™ preheating chamber technology
  • Adjustable fan speed
  • Adjustable exhaust air flap
  • Controller with time-segment and real-time programming
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422

Multi Management Software APT-COM™

Binder From the Inside – See What Happens Behind the Scene

Key Features

  • Uniform drying conditions thanks to APT.line™ technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs
  • Advanced programming options

Key Industries

  • Education & Academics
  • Food & Beverage
  • Pharmaceutical
  • Service
