Binder – Drying and Heating Chambers – Series ED Avantgarde.Line – With natural convection
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Key Features
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to 300 °C
BINDER laboratory ovens with gravity convection or forced-air convection are renowned for their quality and reliability. After extensive redevelopment, these multi-purpose drying chambers are now even more focused on delivering exactly the right specifications needed to dry or heat different materials. What’s more: In addition to the new design, convenient operation, and efficiency of these ovens, the latest APT.line™ technology offers outstanding temperature accuracy—putting this new generation of ovens in a class of its own.
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
BINDER Heating Chambers With High Quality Standards
Effective thermal insulation ensures that the operating costs associated with BINDER heating chambers with natural convection are low. In addition to this, the chambers are user-friendly and can be loaded and unloaded with ease owing to their racks. Cleaning is incredibly straightforward too thanks to the stainless steel finish.
Every aspect of BINDER heating chambers is in line with high quality standards. Alongside an environmentally friendly design and wide range of applications, these units never fail to impress with their high temperature accuracy, efficiency, and usability.
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |

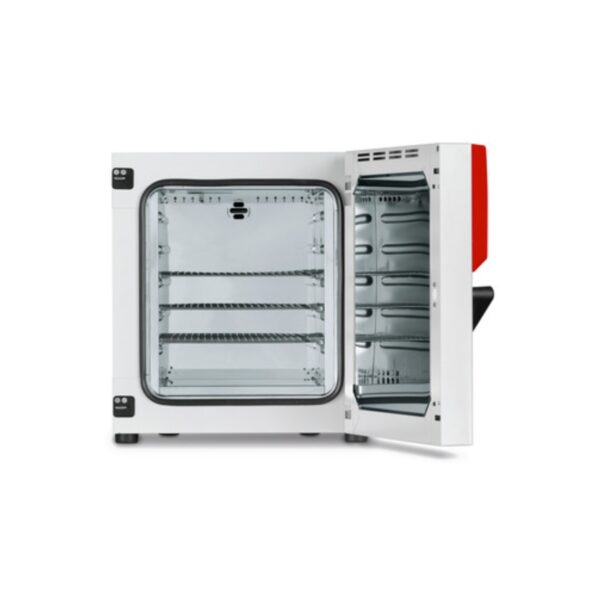

| ED 56 | 560 x 625 x 565 mm | 360 x 420 x 380 mm | 42 kg | 57 L |
| ED 115 | 710 x 705 x 605 mm | 510 x 530 x 425 mm | 57 kg | 114 L |
| ED 260 | 810 x 850 x 760 mm | 610 x 760 x 550 mm | 85 kg | 255 L |

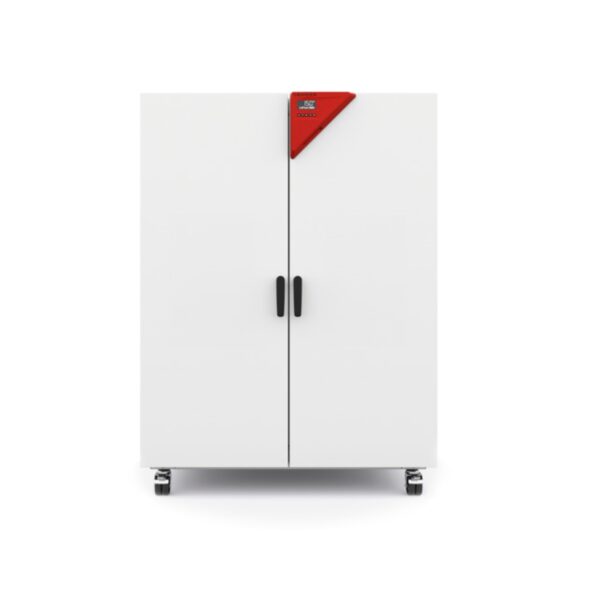

| ED 720 | 1165 x 1590 x 870 mm | 960 x 1280 x 605 mm | 169 kg | 743 L |
Available Models
- Temperature range: ambient temperature plus 5 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
- Temperature range: ambient temperature plus 5 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
- Temperature range: ambient temperature plus 5 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
- Temperature range: ambient temperature plus 5 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
Multi Management Software APT-COM™
Key Industries
- Education & Academics
- Food & Beverage
- Pharmaceutical
- Service
Brand
With 22,000 series production machines supplied each year globally, family company BINDER is now one of the leading experts on environmental simulation chambers. For over 30 years at our German site in Tuttlingen, we have developed and produced premium products which combine superior technology, first-class advice, and exemplary service. These three factors are symbolized by the three red triangles that make up our logo – and our customers appreciate the benefits every day through the outstanding results of their work.
