Binder – Drying and Heating Chambers – Series E Classic.Line – With mechanical adjustment
With a BINDER E series heating oven, you obtain a reliable and powerful unit in a solid configuration at a very attractive price. This heating oven is preferred for tasks in basic research, as well as in human and veterinary medicine.
Key Features
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
Heating Chambers With Mechanical Adjustment From BINDER
BINDER drying and heating chambers are reliable systems for science and research, industry, and quality assurance applications. BINDER’s Classic.Line E series features heating chambers with mechanical adjustment that promise high quality, ease of use, and efficiency. Versatile functionality is combined with a modern design.

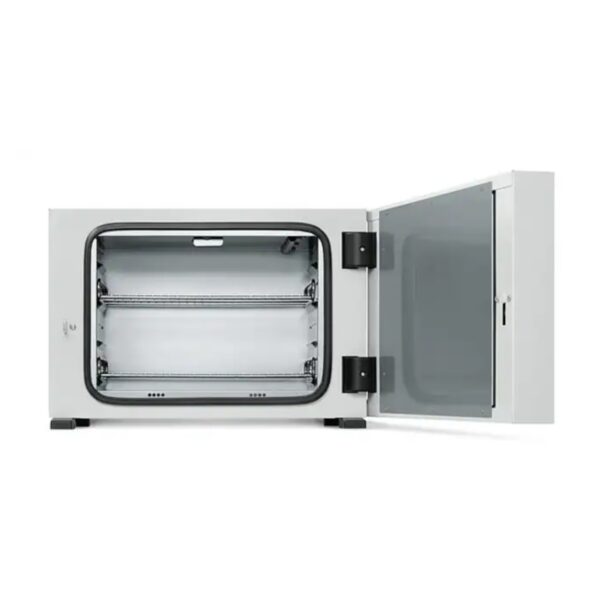

The heating chambers with mechanical adjustment operate within a temperature range of between 60 °C and 230 °C and are equipped with an adjustable exhaust air flap and a hydraulic/mechanical thermostat. The timer can be set for up to 120 minutes, while two chrome-plated racks provide plenty of space for samples and products.
Heating Chambers With Optimum Homogeneous Temperature Distribution
Optimum homogeneous temperature distribution is guaranteed in the heating chambers thanks to the patented APT.line™ preheating chamber technology. In this way, BINDER is offering a key benefit over conventional systems, which have long heating up times and uneven temperature distribution. BINDER’s heating chambers with mechanical adjustment provide consistent conditions across the entire usable space, regardless of the amount or size of the sample. Effective thermal insulation in the heating chambers also reduces operating costs in the long term.
With BINDER, you are guaranteed high quality standards and process reliability. The heating chambers with mechanical adjustment are incredibly easy to use and cleaning is no hassle at all either thanks to their stainless steel finish. The BINDER Classic.Line heating chambers come with either natural or forced convection, with the different versions meeting different laboratory requirements.
Technical Specifications

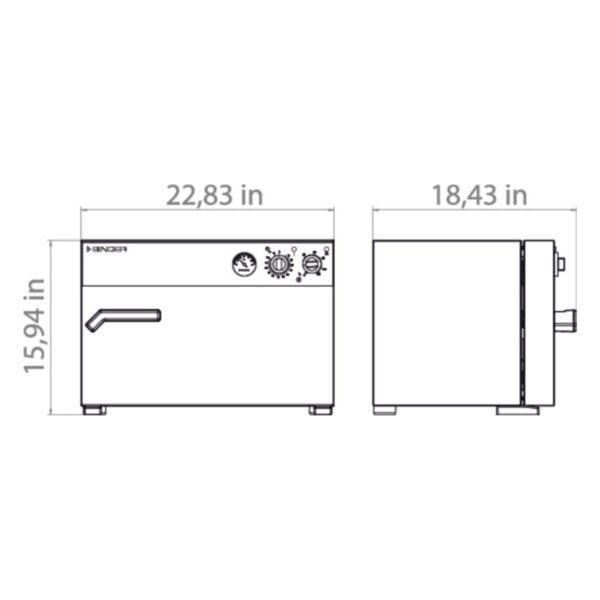

| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| E 28 | 580 x 405 x 425 mm | 400 x 280 x 250 mm | 22 kg | 28 L |
Available Models
- Temperature range: 60 °C to 230 °C
- Adjustable exhaust air flap
- Hydro-mechanical thermostat
- Class 1 temperature limitation device (Model E028-230V-T)
- Timer 0 – 120 min
- 2 chrome-plated racks
Key Industries
- Education & Academics
- Food & Beverage
- Pharmaceutical
- Service
Brand
With 22,000 series production machines supplied each year globally, family company BINDER is now one of the leading experts on environmental simulation chambers. For over 30 years at our German site in Tuttlingen, we have developed and produced premium products which combine superior technology, first-class advice, and exemplary service. These three factors are symbolized by the three red triangles that make up our logo – and our customers appreciate the benefits every day through the outstanding results of their work.
