ATV – SRO-700

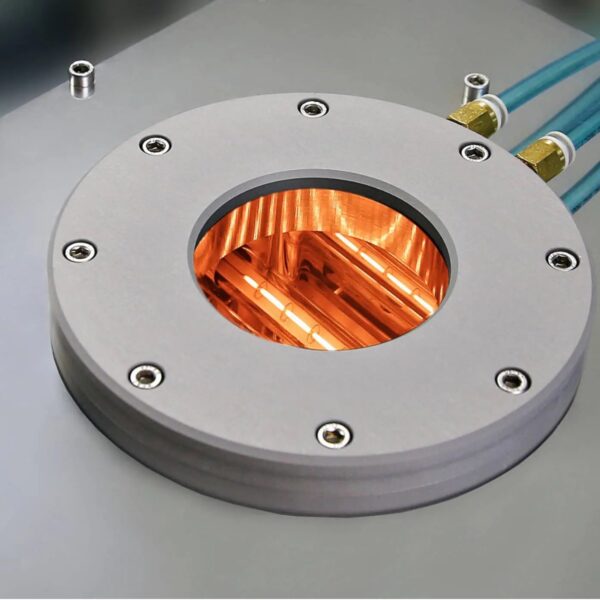

This table top soldering system is the ideal tool for R&D applications. With its rapid thermal annealing and brazing capabilities the SRO-700 is equally suited for your basic reflow soldering applications as well as all your R&D assignments. A cold wall chamber principle in combination with the IR lamp heating technology and the vacuum option will reward you with all the required process repeatability and perfect void free solder joints.
With its 100 mm clearance over the heated surface the system can handle products like IGBT and power electronics packages. The SRO-700 is an incredibly versatile reflow oven for semiconductor and MEMS application. Whatever the objective the SRO-700 is ready to handle it all.
Key Features
- Formic Acid Enriched Atmosphere
- Direct IR Heating
- Multiple TC monitoring
- Process temperature 450°C
- Oxygen < 1,0ppm with PURIFIED N2
- 100 steps/RECIPE program
Technical Specification
| Footprint | 770 x 560 x 800mm (LxWxH) |
| Weight | 65 kg (minimum configuration) |
| Chamber Height | 100mm |
| Heated Area | 230 x 217mm |
| Chamber Lid Open/Closing | Manual |

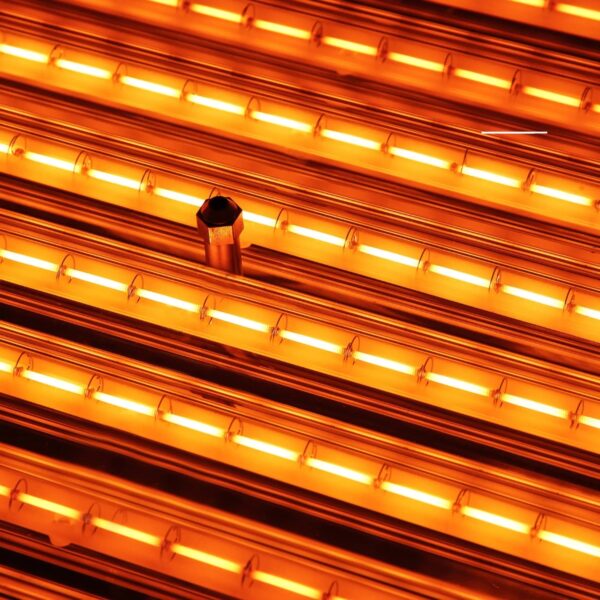

| IR Heating | Array of 8 IR lamps in Quartz glass tubes (2 Heating zones) |
| For further details, please refer to enclosed brochure. |
Key Industries
- Semiconductor, Solar & Electronics
Brand
Founded in 1982 ATV Technologie GmbH is an international player in the field of micro electronics focussing on manufacturing and distribution of vacuum soldering devices and processing ovens.
With an expert team of engineers and physicists rooted in precision mechanics, eletronical and mechanical engineering ATV Technologie GmbH designs and develops a product range at the highest level of quality. Universities, institutes, laboratories and leading production companies worldwide appreciate our customized solutions.
ATV offers long-standing experience in designing and manufacturing high-end process systems featuring precise temperature control and excellent homogeneity for semiconductor technology and micro electronics as well as a worldwide network of special representatives who will take care of on-site sales and service.
