Atlas Copco – Air receivers
Working air receivers for on-board marine applications
Versatile working air receivers for marine applications. Built to withstand corrosion. Come fully equipped.
Starting air receivers for marine
Our versatile starting air receivers for on-board marine applications are built to withstand corrosion and come fully equipped.
HTA high-pressure compressed air receivers
Our HTA high-pressure air receiver stores compressed air for peak demand. Air is readily available at a constant pressure, while you save on energy costs and extend your compressor’s lifespan
Technical Specification
| Working air receivers for on-board marine applications | Starting air receivers for marine | HTA high-pressure compressed air receivers | |
| Volume | 250 l – 2,000 l | 125 l – 1,500 l | 500 l – 3,000 l |
| Length | 153 cm – 242 cm | 1,700 cm – 3,350 cm | 0 cm – 0 cm |
| Pressure | – | 33 bar | 40 bar |
Available Models
Certified to perform in marine conditions
Our working air receivers offer versatility for a wide range of on-board applications. Equipped to the highest standards, they are treated to withstand corrosion. You can be sure of the highest performance with approval and certification by all major classification societies including:
- LLR
- BV
- DNV
- ABS
- RINA
- GL
Key Features
- Versatile
Our marine working air receivers are designed to cope with high pressure, making them suitable for various on-board applications
- Durable
Hot-dip galvanized corrosion protection according to ISO 1461 ensures a long lifetime of reliable operation
- All-in
Our marine working air receiver comes complete with all necessary ancillaries. This includes a 100 mm dial glycerin filled pressure gauge c/w test flange, drain valve and safety valve
Atlas Copco’s versatile starting air receivers for a range of on-board marine applications withstand corrosion, even in tough conditions. All-in set-up.
Key Features
- Extreme durability
Our starting air receivers are specifically treated to prevent corrosion. Inside: sandblasted SA 2½ + Brantho Nitrofest coating. Outside: sandblasted SA 2½ + zinc primer and enamel topcoat
- Easy installation
The starting air receiver can be mounted horizontally or vertically, with or without feet
- All-in solution
The marine starting air receiver is delivered with all necessary ancillaries. This includes a 100 mm dial glycerin filled pressure gauge c/w test valve and safety valve

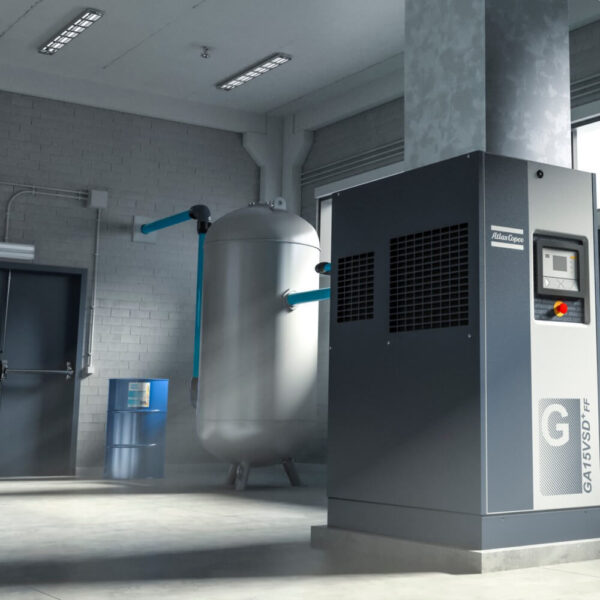

Saving energy for high pressure applications
Atlas Copco’s HTA high-pressure air receiver makes air available at a constant pressure by storing compressed air for peak demand. By avoiding undue load/unload cycles, it saves energy costs and extends the life of the compressor. The HTA is ideal for high-pressure applications.
Key Features
- For all site conditions
The HTA operates effectively at ambient temperatures from -10°C/14°F to +55°C/131°F, for wet and humid compressed air. Optional condensate drain
- Safe sizing
HTA receivers easily match a compressor design pressure of 45 bar and a design temperature of 55°C/131°F
- High reliability
The HTA is designed for maximum reliability according to a dynamic calculation by finite elements, for the calculation of resistance, stress, pulsations and vibrations (CE 97/23 – ASME section VIII, div 3)
- Sturdy construction
Maximum protection thanks to a safe, hot-dip galvanized metallic tank
- Easy installation
Fitted with readily accessible fixation holes for ease of installation
Key Features
Air receivers
Flexibility
From decades of experience we know the diversity of needs required from a compressed air system. That is why we deliver air receivers for all applications
High reliability
Both our air receivers and our aftercoolers offer a long lifetime of reliable operation because of the usage of premium quality materials
Energy efficient
A non-existing pressure drop means there is no loss of power. This means no extra demand on your compressor, avoiding additional energy or maintenance costs
Key Industries
- Automotive
- Chemical
- Energy
- Environmental
- Food & Beverage
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Textile
Brand
Great ideas accelerate innovation. At Atlas Copco we have been turning industrial ideas into business-critical benefits since 1873. By listening to our customers and knowing their needs, we deliver value and innovate with the future in mind. Atlas Copco is based in Stockholm, Sweden with customers in more than 180 countries and about 37 000 employees. Revenues of BSEK 95/ 9 BEUR in 2018.
