  • Application Note: Determination of Bacterial Growth and Protein Content with the fluidlab R-300

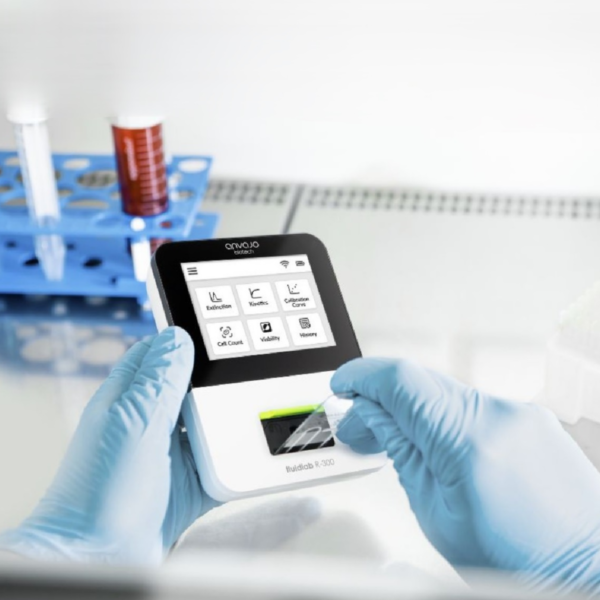

The first device that combines Cell Counting and Spectrometry

Combining a full-fledged spectrometer with an automated cell counter, a variety of analyses such as absorbance, scatterlight and time-series measurements, automated cell counting and staining-free viability measurements can be performed. The intuitive handling and precise measurements make the fluidlab R-300 the laboratory instrument of the future.

Key Features

  • Automated Cell Count
  • Staining Free Viability Measurements
  • Extinction & Kinetics (375-700 nm)
  • Maintenance free

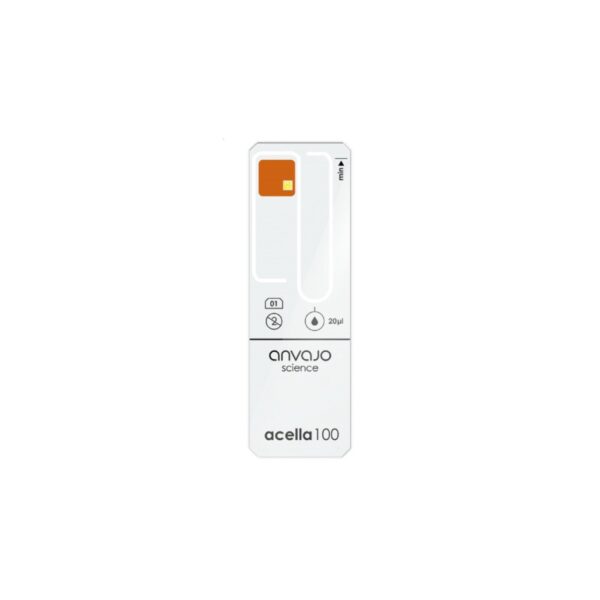

Acella sample carrier

The acella, a proprietary sample carrier format that uses a glass substrate, is the optimal multi-purpose slide for your cell counting and viability assessment. It comes in three different chamber heights (20µm, 50µm, and 100µm) to ensure the best possible results from measurements of very small and large cells or heterogeneous cell samples.



Technical Specifications : Device

* = Battery claims depend on network configuration and many other factors; actual results will vary. Battery has limited recharge cycles and may eventually need to be replaced by anvajo. Battery life and charge cycles vary by use and settings.

Dimensions128 mm x 94 mm x 33 mm
Weight240 g
Display3.5″ Color Touch Screen
Connectivity802.11 b/g/n Wireless LAN
BatteryRechargeable Li-Ion battery
Battery Runtime5 hours
Input Voltage5 V DC via USB-C Power Adapter
Power Adapter100 – 240 V AC 50/60 Hz
Data StorageInternal Flash Memory

Technical Specifications : Cell Counter

* = Battery claims depend on network configuration and many other factors; actual results will vary. Battery has limited recharge cycles and may eventually need to be replaced by anvajo. Battery life and charge cycles vary by use and settings.

Imaging MethodDigital Holography
Analysis MethodMachine Learning Classifier
Field of View2.3 mm x 2.3 mm (5.3 mm²)
Cell Size Limits3 – 80 µm (cell count), 8 – 80 µm (viability)
SpectrometerLight Source Multiwavelength LED Module
Wavelength Range375 – 700 nm
Spectral Bandwidth2 nm
Photometric Measuring Range0 – 2.5
Compatible Sample CarriersAnvajo acella slides and Standard 10 mm cuvettes

Key Features

Cell Counter

  • Label-free viability measurements via holographic microscopy
  • Large FoV for high statistical significance
  • Small sample volume needed (4-20 µl)

Spectrometer

  • Full spectral graphs recorded from 375 to 700 nm
  • No maintenance and re-calibration needed
  • Portable and small

Accuracy and Reliability

The fluidlab R-300 performs with high linearity across different cell types over a large concentration range

Anvajo Fluidlab R300

Key Industries

  • Biopharmaceutical and Biotechnology

Brand

Anvajo

anvajo GmbH is a Dresden-based technology company that develops, manufactures and sells innovative solutions for the analysis of liquids. Our interdisciplinary team is working enthusiastically on the world’s most compact universal platform for fluid analysis, the “fluidlab”. It combines the instrument itself, a software suite and multifunctional sample carriers. The system of the “fluidlab” is based on progressive technologies such as holographic microscopy, machine-learning-supported image analysis, mobile embedded hardware, function-integrated optics and meso- and microfluidic sample carriers. Since August 2019, production and sales of the first series product based entirely on the “fluidlab” – a point-of-care testing solution on behalf of a leading veterinary company – have been underway.
