AMADA – Transistor Welding Power Supplies

Features three types of control: constant current, constant voltage, and constant current and voltage

Features of Polarity switching type and Two-channel type

Key Features

• Fast rise time: AMADA Transistor-controlled welding power supplies have rise times 4.5 times faster than that of conventional* models. high quality welding can be accomplished in a short period of time on small work pieces. (*Compared with conventional model MD-1500E)
• No welding transformer needed: The welding current is directly controlled with fast switching by transistor, so no welding transformer is required.
• Built-in pre-check function: Applying current on the workpiece before the main current, it is possible to judge whether or not there is a workpiece set on the electrodes, and to evaluate the status of workpiece.

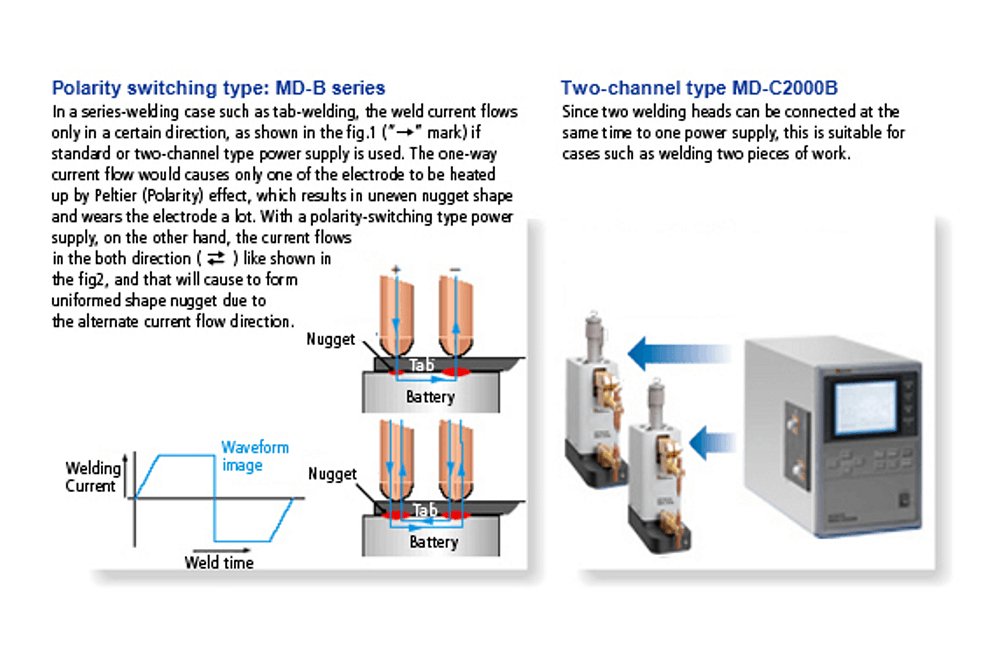

• Polarity switchable type: This can eliminate the Peltier effect (polarity effect) and provide uniform nugget diameters on series welding.
• Two-channel type: Two weld heads can be controlled by one power supply. It contributes to cost and space savings.

Available Models

AMADA Transistor Welding Power Supplies, MD-B4000B

Technical Specifications

Type	Polarity switching
Power requirements	Single-phase, 100 to 120VAC or 200 to 240VAC 50/60Hz
Max. power consumption	350W
Max. weld current	5000A
Max. weld voltage	30V
Squeeze timer	000 to 999ms or 000 to 999ms x 10
Precheck timer	0.00 to 1.00ms for welding, 2ms for evaluation
Upslope timer	0.00 to 9.99ms (included in Weld and Weld 1)
Weld or Weld 1,2 timer	0.00 to 9.99ms
Cool timer	0.00 to 9.99ms
Downslope timer	0.00 to 9.99ms (included in Weld and Weld 2)
Hold timer	000 to 999ms
Dimensions (mm)	172W x 390D x 400H
Weight	28kg

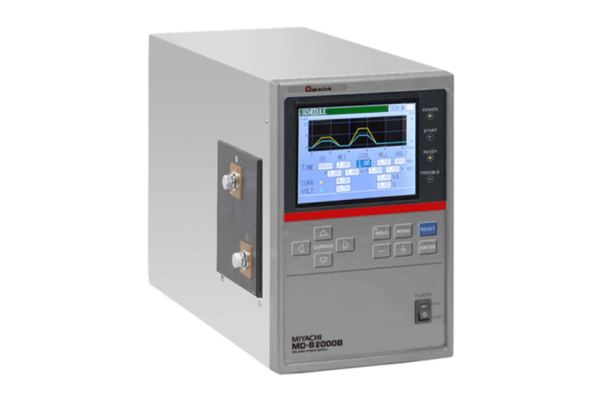

AMADA Transistor Welding Power Supplies, MD-B2000B

Technical Specifications

Type	Polarity switching
Power requirements	Single-phase, 100 to 120VAC or 200 to 240VAC 50/60Hz
Max. power consumption	300W
Max. weld current	3000A
Max. weld voltage	30V
Squeeze timer	000 to 999ms
Precheck timer	0.00 to 1.00ms for welding, 2ms for evaluation
Upslope timer	0.00 to 9.99ms (included in Weld and Weld 1)
Weld or Weld 1,2 timer	0.00 to 9.99ms
Cool timer	0.00 to 9.99ms
Downslope timer	0.00 to 9.99ms (included in Weld and Weld 2)
Hold timer	000 to 999ms
Dimensions (mm)	172W x 390D x 269H
Weight	18kg

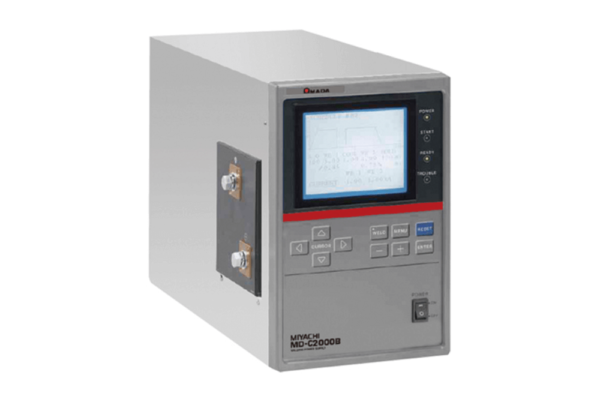

AMADA Transistor Welding Power Supplies, MD-C2000B

Technical Specifications

Type	Two channel
Power requirements	Single-phase, 100 to 120VAC or 200 to 240VAC 50/60Hz
Max. power consumption	300W
Max. weld current	3000A
Max. weld voltage	30V
Squeeze timer	000 to 999ms
Precheck timer	0.00 to 1.00ms for welding, 2ms for evaluation
Upslope timer	0.00 to 9.99ms (included in Weld and Weld 1)
Weld or Weld 1,2 timer	0.00 to 9.99ms
Cool timer	0.00 to 9.99ms
Downslope timer	0.00 to 9.99ms (included in Weld and Weld 2)
Hold timer	000 to 999ms
Dimensions (mm)	172W x 390D x 269H
Weight	18kg
