AMADA – Laser Workstation – WL-100A
AMADA’s WL-100A is a highly configurable, compact unit designed for lean manufacturing and offering the widest range of marking capability in its class.
Standard options include a rotary stage to tailor the machine to your specific process.
Integrated with AMADA’s popular LM-F Series fiber markers, this unit has the same GUI and interface for easy transfer from prototype to production phase.
Technical Specifications
| Electrical | Single phase, 90 -130 VAC/180 – 260 VAC, 50/60 Hz, 10 A |
| Standard lens options | f-theta – 100 mm, 160 mm, 254 mm |
|---|---|
| Laser protection class | CDRH Class 1 |
| Software | WinLase® |
| Available markers | All LM-F Series fiber laser markers (10 – 70 W) |
| Axes options | Z, Rotary |
| Axes types | Manual Z-jog, programmable Z, direct drive rotary |
| Work piece size | 100 mm – 10 in x 8 in x 8 in (250 mm x 200 mm x 200 mm) 160 mm – 8 in x 8 in x 8 in (200 mm x 200 mm x 200 mm) 254 mm – 3.8 in x 8 in x 8 in (98 mm x 200 mm x 200 mm) |
| Work piece rotary part size | Up to 2.5 in (60 mm) diameter |
| Dimensions (LxWxH) – Enclosure closed – Enclosure fully opened | 31.2 in x 17.4 in x 33.9 in (814.5 mm x 441.1 mm x 860.8 mm) 31.2 in x 17.4 in x 52 in (814.5 mm x 441.1 mm x 1320.8 mm) |
| Weight | 150 lb (68 kg) |
Key Features
Laser Workstation – WL-100A

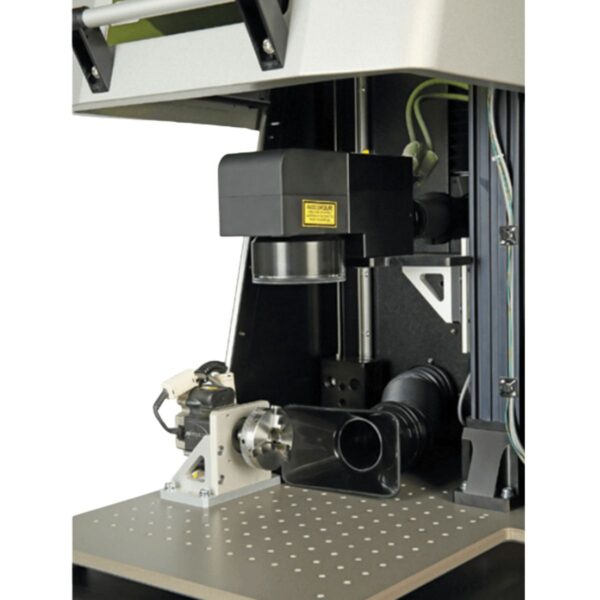

- Compact, workstation designed for benchtop operation – minimal workspace needed
- Fast and precise motorized Z-axis for easy focus adjustment (programmable axis optional)
- Easy access to parts and tooling
- Large viewing window for easy mark monitoring
- F-Theta 100 mm, 160 mm and 254 mm lens options for marking various parts and sizes
- Fume extraction port with flexible tubing
- Compact, motorized rotary axis for marking cylindrical parts (optional)
- M6 pattern mounting base plate for easy part fixturing
- Integrated with AMADA’s industrially proven LM-F Series Fiber Laser Markers (10-70 W)
- Communication Protocols: RS-232, EtherNet/IP™, Ethernet TCP/IP, Digital
Software Features
- Powerful, user-friendly Windows® based job editor
- Easy to import graphics
- Multi language support
- Advanced DXF filter with process optimization
- Password protected security lockout
- Touch screen GUI Enabled
- Windows 10 compatible
Mark Types
- Line-art graphics: CAD, linedrawings, logos
- Shaded graphics: photos, halftones & grayscale artwork
- TrueType® fonts, filled or outline-only
- Single point or drill object arrays
- 1D and 2D (Data matrix and QR code) barcodes
- MS AutoDate, MS TextMerge, serialization, and barcode
Key Industries
- Aerospace
- Automotive
- Defense
- Electronics
- Machinery & Manufacturing
- Medical
- Semiconductor, Solar & Electronics
