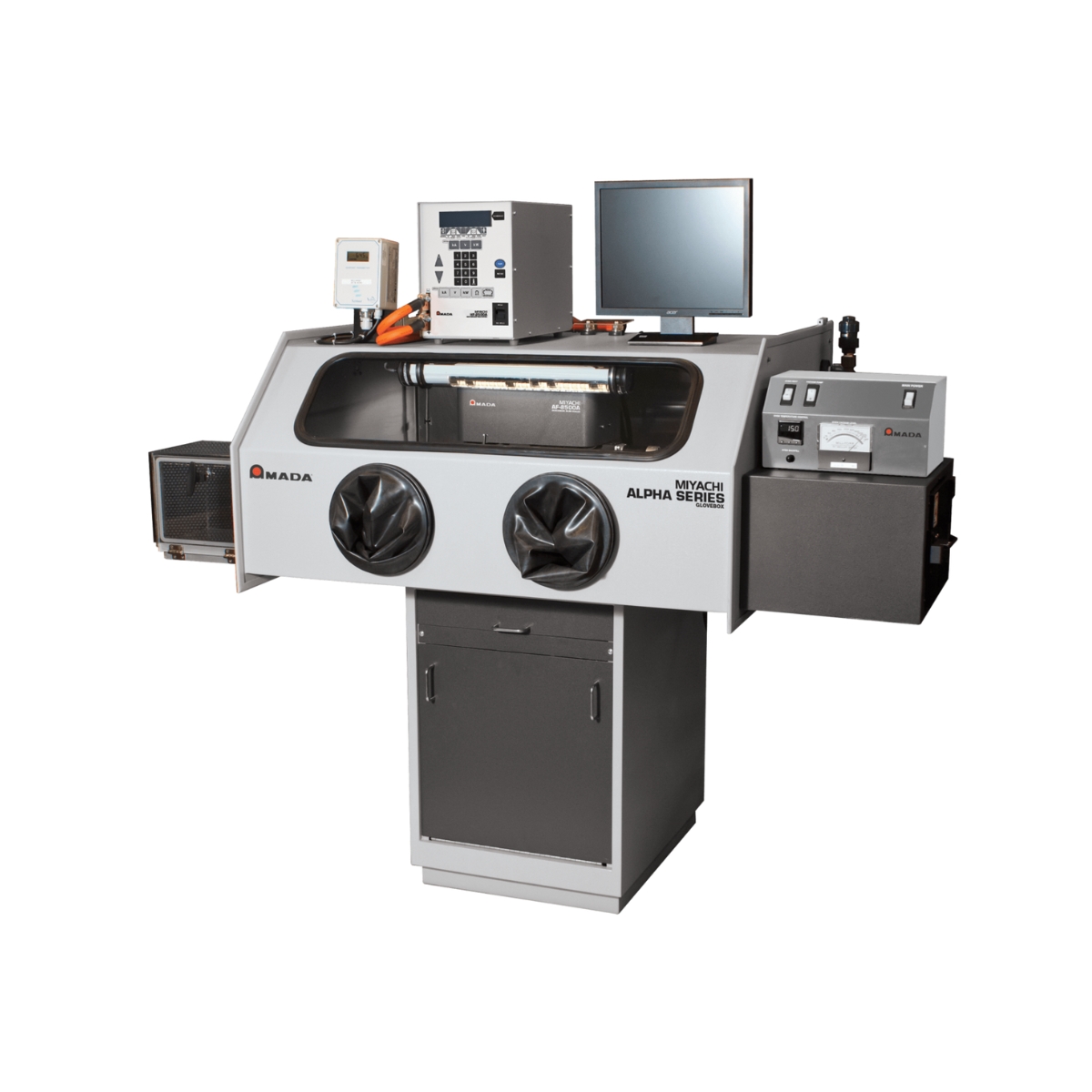

AMADA – Glovebox Welding Systems – Alpha Series
The field proven Alpha Series glovebox systems provide compact and effective platforms for environmental control with excellent price to performance value. The Alpha Series is excellent for both production R&D applications. The glovebox is available in two sizes: one for projection welding applications and the other for seam sealing or general industrial use. Straight-forward controls allow the operator to easily operate oven, vacuum and inert gas backfill controls.
Key Features
- Configurations available for integrated seam sealing, projection welding, or stand-alone industry use
- Stainless steel construction with exterior epoxy finish for easy maintenance
- Ergonomically designed safety glass viewing window with interior lighting
- Two glove ports with built-in armrests
- Antechamber to transfer tools and product into enclosure
- Standard oil-free vacuum pump with vacuum oven
- Optional vacuum bakeout oven
- Easy access, clean antechamber
- Calibrated to NIST standards
- CE certification available
Technical Specification
| Leak Rate (at 2,5 mbar) | 10 SCFH (3m3/hr) | |
|---|---|---|
| Enclosure Size (W x D x H) | 33.5 x 24 x 14.5 in (851 x 6100 x 3680 mm) – Seam Sealing Enclosure/2 Glove Ports 44.5 x 35 x 20 in (1130 x 889 x 508 mm) – Projection Welding Enclosure/2 Glove Ports | |
| Antechamber and Oven Sizes (L x W x H) | 14 x 7.63 x 7.63 in (355 x 195 x 195 mm) – Stainless Steel 11.25 x 8 x 8 in (280 x 200 x 200 mm) – Polycarbonate | |
| Antechamber Controls | Manual: Backfill | |
| Oven Controls | Manual: Temperature, Vacuum, Backfill | |
| Antechamber & Oven Interlocks | No | |
| Antechamber & Automated Sliding Inner Door | No | |
| Antechamber and Oven Door Loading Options | Stainless Steel – End | |
| Polycarbonate – Front | Polycarbonate – Front | |
| Oven Heating Configuration | Heated walls | |
| Weight | Varies with selected options | |
| For further details, please refer to enclosed brochure. | ||
Available Models
| Seam sealing enclosure | Projection welding enclosure | ||
|---|---|---|---|
| Dimensions (L x W x H) | 35 in x 44.5 in x 20 in (89 cm x 113 cm x 37 cm) | 24 in x 33.5 in x 14.5 in (61 cm x 85 cm x 37 cm) | |
| Weight | Will vary with selected options | Will vary with selected options | |
| For further details, please refer to enclosed brochure. | |||
