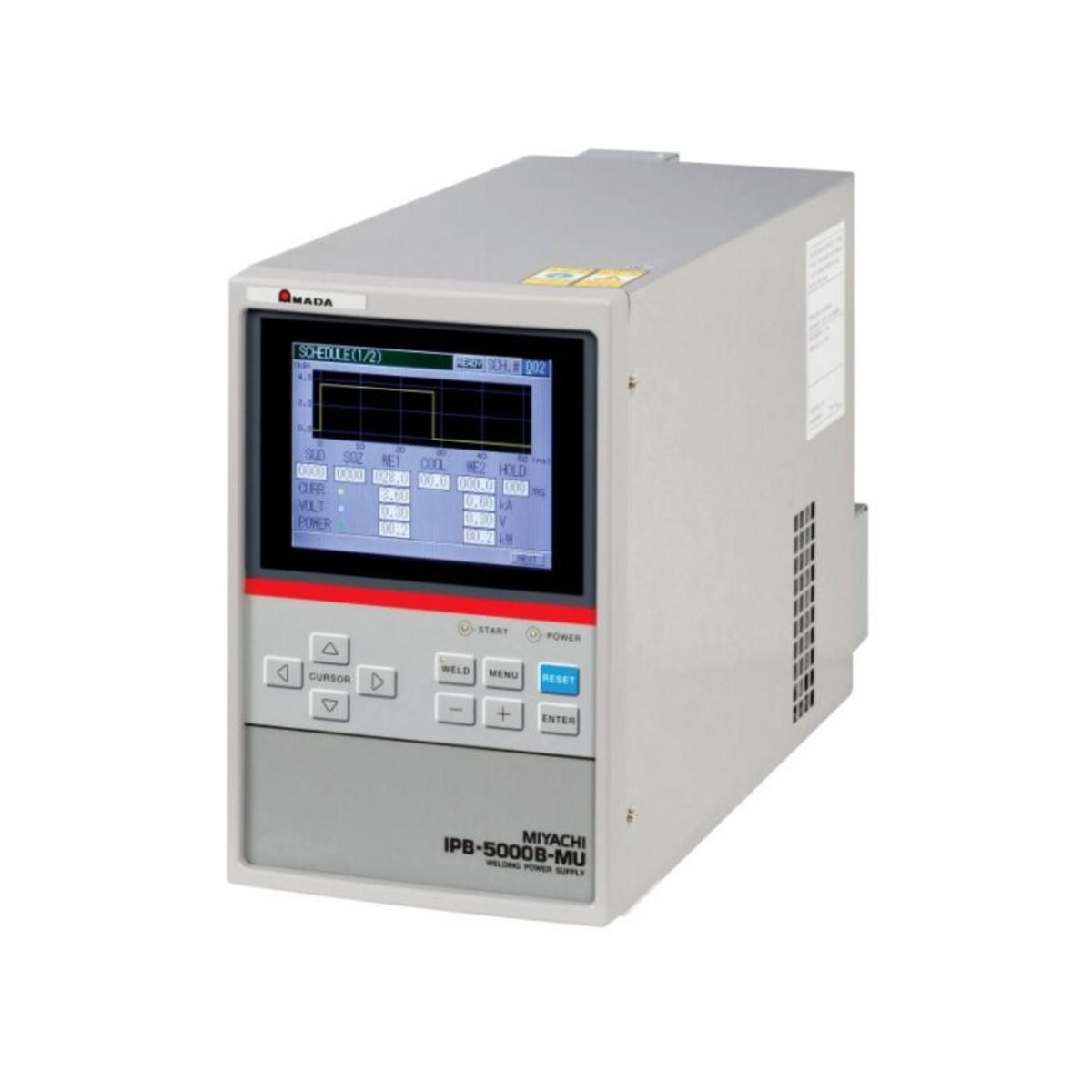

AMADA – DC Inverter Welding Power Supply, IPB-5000B-MU

The IPB-5000B-MU inverter spot welder delivers superior welding control for a wide range of microjoining applications. When paired with the ITB-780A6 transformer this unit is capable of a maximum output of 6000 Amps, making it ideal for most resistive and conductive welding applications.

Available in :

Inquire Now

Overview

Features

Specifications

It operates in constant current, voltage or power feedback modes and is also capable of welding in a combo mode (current and voltage) to address even the most challenging application or process conditions.

Key Features

  • Control Modes: Optimum control modes for obtaining ideal weld quality and consistency can be chosen from; constant current control, constant voltage control, combination of constant current and constant voltage control, and constant power control.
  • GOOD/NO GOOD determination: The comparator feature allows to set upper and lower limits around the measured value of up to four parameters; which are current, voltage, power and resistance. When those values reach out of the limits, an error signal or a caution signal alarms.
  • Diplacement Measurement: Measures how much an electrode moves down because of material collapse during weld. Weld to displacement – stops welding when displacement value reaches the set value. Requires displacement sensor sold separately.
  • Envelope: The envelope feature allows dynamic limits to be set around a monitored waveform to ensure the same resistance change occurs at the same rate for every weld.

Technical Specification

IPB-5000B-MU
Power requirementsThree phase, 200-240 VAC or 380-480 VAC, 50/60 Hz
Primary frequency5 kHz
Primary current200 A
Current setting range0.40 – 6.00 kA
Current monitor0.00 – 9.99 kA
Displacement monitor-29.999 mm to 29.999 mm
For further details, please refer to enclosed brochure.
