About SET Smart Equipment Technology

SET, Smart Equipment Technology, is a world leading supplier of High Accuracy Flip Chip Bonders and versatile Nanoimprint Lithography (NIL) solutions. For 45 years, we have been designing and manufacturing semiconductor equipment dedicated to high precision applications. We accompany laboratories and industries of semiconductor, which look for a high precision and an important reliability in the assembly of their components in their projects, and accelerate their developments of the chips of future thanks to our robust and precise flip-chip bonders. With Device Bonders installed worldwide, SET is globally renowned for the unsurpassed sub-micron accuracy and the flexibility of its bonders. First introduced in 1981, the Flip-chip Bonder line became the primary focus of the company in 1997. Ranging from manual loading to fully automated version, our bonders cover a wide range of bonding applications and offer the unique ability to handle and bond fragile and small components onto substrate up to 300 mm.

Products

Showing all 9 results

  • SET - ACCµRA M

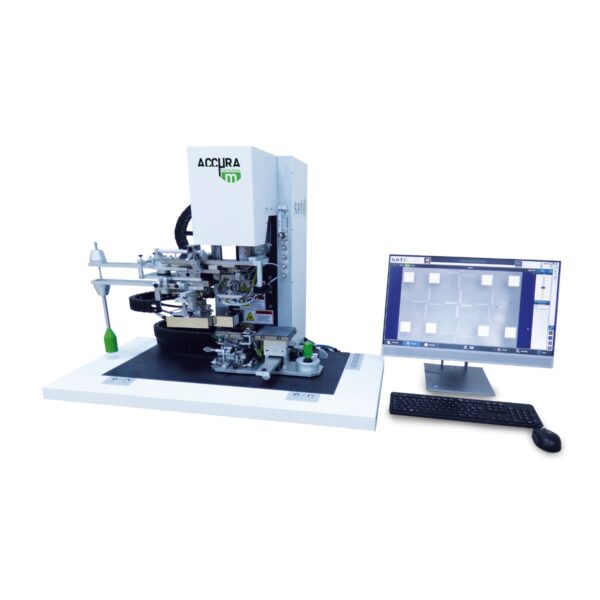

    SET – ACCµRA M

    The ACCµRA M is a manual flip-chip bonder that allows ± 3 µm accuracy. This equipment permits to align manually the components with a high level of precision. The motorized arm controls precisely the bonding force. Combining and synchronizing t…

    The ACCµRA M is a manual flip-chip bonder that allows ± 3 µm accuracy. This equipment permits to align manually the components with a high level of precision. The motorized arm controls precisely the bonding force. Combining and synchronizing the arm with the temperature controller, it guarantees a perfect quality and high repeatability of your process.

    Learn MoreDone
  • SET - ACCµRA OPTO

    SET – ACCµRA OPTO

    The ACCµRA OPTO is a flip-chip bonder that allows ± 0.5 µm accuracy. It is dedicated to low force and reflow processes.

    The ACCµRA OPTO is a flip-chip bonder that allows ± 0.5 µm accuracy. It is dedicated to low force and reflow processes.

    Learn MoreDone
  • SET - ACCµRA Plus

    SET – ACCµRA Plus

    ACCµRA Plus is a flip-chip bonder designed for ± 0.5 µm accuracy in full automatic mode. It is suitable for reflow and thermocompression processes.

    ACCµRA Plus is a flip-chip bonder designed for ± 0.5 µm accuracy in full automatic mode. It is suitable for reflow and thermocompression processes.

    Learn MoreDone
  • SET - ACCµRA100

    SET – ACCµRA100

    The ACCµRA100 is a flip-chip bonder that allows ± 0.5 µm accuracy. Motorized axes guarantee a high repeatability of your process. Its flexibility makes it ideal for developing a wide range of applications. ACCµRA100 combines…

    The ACCµRA100 is a flip-chip bonder that allows ± 0.5 µm accuracy. Motorized axes guarantee a high repeatability of your process. Its flexibility makes it ideal for developing a wide range of applications. ACCµRA100 combines high precision, accessibility and cost-effectiveness.

    Learn MoreDone
  • SET - FC150

    SET – FC150

    The FC150 is an accurate and very flexible flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 200 mm) applications on the same open platform.

    The FC150 is an accurate and very flexible flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 200 mm) applications on the same open platform.

    Learn MoreDone
  • SET - FC300

    SET – FC300

    The FC300 is a high accuracy and high force flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 300 mm) applications. FC300 covers a large range of bonding forces, from 1 to 4000N. That makes it perfectly suitable for reflow …

    The FC300 is a high accuracy and high force flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 300 mm) applications. FC300 covers a large range of bonding forces, from 1 to 4000N. That makes it perfectly suitable for reflow and thermocompression processes.

    Learn MoreDone
  • SET - LDP150

    SET – LDP150

    The LDP150 is an electrical Press especially designed for bonding large light or radiation detectors (50 ~ 150mm). It uses compression process at room temperature (thermo-compression option available).

    The LDP150 is an electrical Press especially designed for bonding large light or radiation detectors (50 ~ 150mm). It uses compression process at room temperature (thermo-compression option available).

    Learn MoreDone
  • SET - NEO HB

    SET – NEO HB

    NEO HB is a flip-chip bonder designed for ± 1 µm @ 3σ accuracy in stand-alone or full automatic mode (EFEM). It is suitable for Hybrid/Direct bonding processes. NEO HB combines high precision, flexibility and short cycle time.

    NEO HB is a flip-chip bonder designed for ± 1 µm @ 3σ accuracy in stand-alone or full automatic mode (EFEM). It is suitable for Hybrid/Direct bonding processes. NEO HB combines high precision, flexibility and short cycle time.

    Learn MoreDone
  • SET - NPS300

    SET – NPS300

    Optimized for the production of nanostructures, the Nano imPrinting stepper Stepper NPS300 is the first ever tool able to combine Hot Embossing and UV-NIL on a same platform. The NPS300 is able to print sub-20 nm geometries with …

    Optimized for the production of nanostructures, the Nano imPrinting stepper Stepper NPS300 is the first ever tool able to combine Hot Embossing and UV-NIL on a same platform. The NPS300 is able to print sub-20 nm geometries with an overlay accuracy of 250 nm, when in-situ alignment is performed.

    Learn MoreDone
