250UPL Compact Diamond Turning Lathe.

Simple to use and engineered for high productivity. Our latest generation of the most user friendly and compact ultra-precision CNC diamond turning lathe. Used for the rapid production of spherical & aspheric optical lenses, mirrors, mold inserts, freeform optics, and even mechanical components. If your application fits within a 350mm diameter window (with optional riser package), this machine may be the ideal solution for your ultra precision needs. Achieves both sub-nanometer level surface finishes and sub-micron form accuracies directly off the machine in a wide variety of materials.

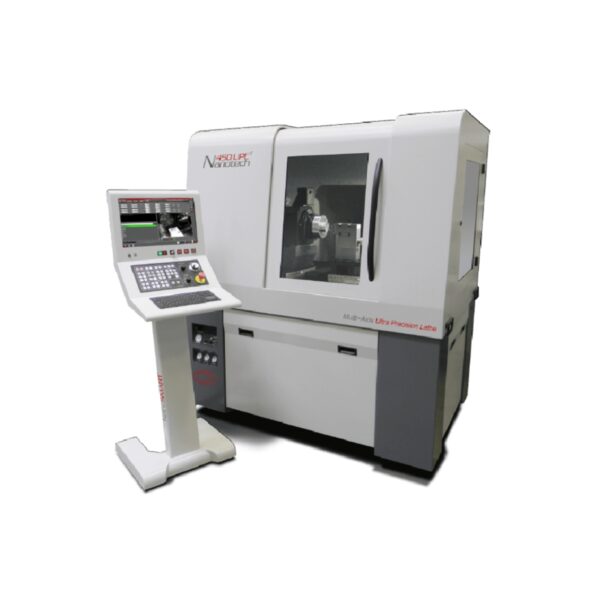

450UPL Midsize Diamond Turning Lathe.

Only Nanotech offers a proven and established midsize ultra precision system. The 450UPLv2 is comfortably suitable for both single point diamond turning and deterministic micro-grinding of optical elements. Applications examples include the manufacture of components used in a wide variety of markets such as electro-optics, aerospace, defense, consumer electronics, bearing, and computer industries. As an ideal midsize option for our customers, the standard configuration of this popular machine model yields a 450mm diameter swing capacity, but increased swing capabilities are readily available upon request.

140GPM Glass Molding Press

The Nanotech 140GPM is a glass press molding machine designed for precision glass optic applications. It features a single molding chamber with a 140mm diameter capacity. This machine compliments the Nanotech 100UPG which is ideal for ultra precision grinding of WC and SiC mold components. The Nanotech 450UPL or 650FG can also be configured for ultra precision grinding of these molds. Together, the combination of systems forms an ultra precision glass press molding cell.
